USB3318C-CP-TR

高速USB收发器，具有1.8V - 3.3V ULPI接口 - 13MHz的参考时钟 Hi-Speed USB Transceiver with 1.8V-3.3V ULPI Interface - 13MHz Reference Clock

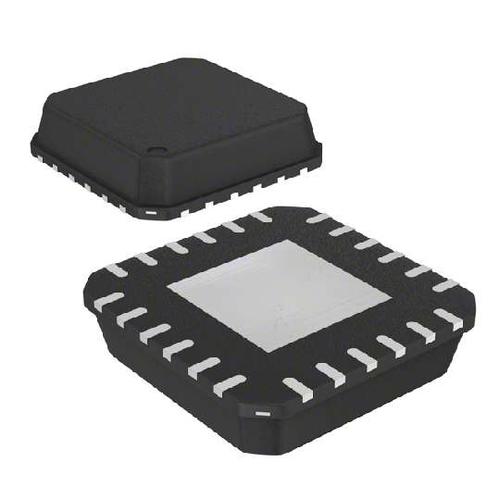

Transceiver Half USB 2.0 24-QFN 4x4

得捷:
IC TRANSCEIVER HALF 24QFN

立创商城:
USB3318C-CP-TR

艾睿:
USB Transceiver 1TR 24-Pin QFN EP T/R

安富利:
The USB3318 is a highly integrated Hi-Speed USB 2.0 Transceiver PHY that supports systems architectures based on a 13MHz reference clock. It is designed to be used in both commercial and industrial temperature applications.The USB3318 meets all of the electrical requirements to be used as a Hi-Speed USB Host, Device, or an On-the-Go OTG device. In addition to the supporting USB signaling the USB3318 also provides USB UART modeUSB3318 uses the industry standard UTMI+ Low Pin Interface ULPI to connect the USB PHY to the Link. The industry standard ULPI interface uses a method of in-band signaling and status byte transfers between the Link and PHY, to facilitate a USB session. By using in-band signaling and status byte transfers the ULPI interface requires only 12 pins.The USB3318 uses SMSC’s “wrapper-less” technology to implement the ULPI interface. This “wrapperless” technology allows the PHY to achieve a low latency transmit and receive time. SMSC’s low latency transceiver allows an existing UTMI Link to be reused by adding a UTMI to ULPI bridge. By adding a bridge to the ASIC the existing and proven UTMI Link IP can be reused.

Chip1Stop:
USB Transceiver 1TR 24-Pin QFN EP T/R

Verical:
USB Transceiver 1TR 24-Pin QFN EP T/R
