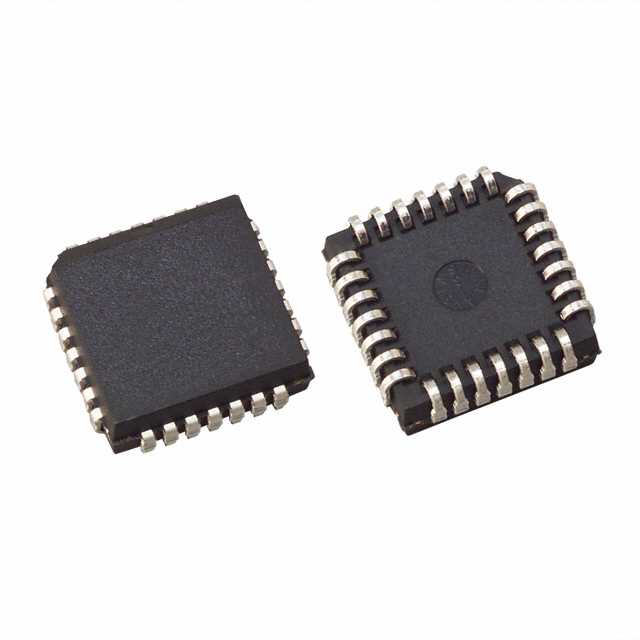

TEXAS INSTRUMENTS UC3176QP Motor Driver/Controller, Full Bridge, 3V to 35V supply, 35V/2A/2Outputs, LCC-28
Looking to make your linear actuators and hydraulic pumps better? Implement this stepper motor driver manufactured by Texas Instruments. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This motor controller has a minimum operating temperature of -55 °C and a maximum of 150 °C. This device has a minimum operating supply voltage of 3 V and a maximum of 35 V.
电源电压DC 3.00V min
输出接口数 2
输出电压 35 V
输出电流 2 A
供电电流 21 mA
电路数 2
通道数 2
转换速率 1.00 V/μs
增益频宽积 1 MHz
输入补偿电压 8 mV
输入偏置电流 100 nA
工作温度Max 150 ℃
工作温度Min -55 ℃
3dB带宽 1 MHz
增益带宽 1 MHz
电源电压Max 35 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 28
封装 PLCC-28
封装 PLCC-28
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UC3176QP TI 德州仪器 | 当前型号 | 当前型号 |
UC3176QPTR 德州仪器 | 类似代替 | UC3176QP和UC3176QPTR的区别 |
UC3177QP 德州仪器 | 功能相似 | UC3176QP和UC3177QP的区别 |
