UG2B-E3/54

VISHAY  UG2B-E3/54  快速/超快二极管, 单, 100 V, 2 A, 950 mV, 15 ns, 60 A

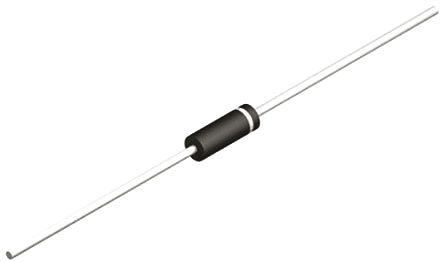

The is a miniature ultra-fast Plastic Rectifier with solderable matte tin-plated terminals. It is suitable for use in high frequency rectification and free-wheeling application in switching mode converters and inverters.

.

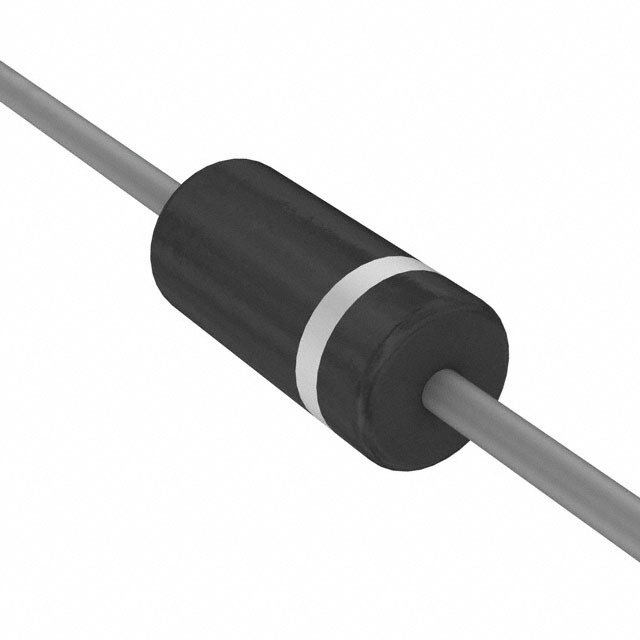

Colour band denotes cathode end

.

Glass-passivated pallet chip junction

.

Ultra-fast reverse recovery time

.

Low forward voltage drop

.

Low switching losses, high efficiency

.

High forward surge capability

.

Solder dip 275°C maximum 10sec as per JESD 22-B106

.

Halogen-free

.

UL94V-0 Flammability rating
