Darlington Transistor Arrays, Texas InstrumentsThis array of seven Darlington transistor circuits is able to drive high output current.### 达林顿晶体管驱动器
复合晶体管阵列,Texas Instruments
Texas Instruments 提供的达林顿晶体管阵列,适合各种中电流至高电流驱动器应用。
得捷:

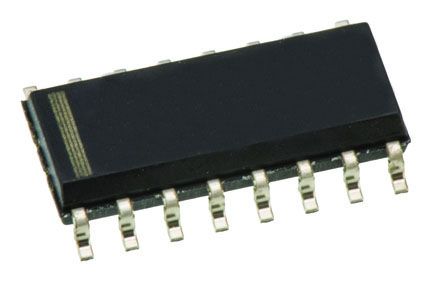

IC PWR DRIVER NPN 1:1 16SOIC
立创商城:
ULQ2004ATDRQ1
德州仪器TI:
50-V, 7-ch automotive darlington array with 15-V input capability and high temperature support
欧时:
### Darlington Transistor Arrays, Texas InstrumentsThis array of seven Darlington transistor circuits is able to drive high output current.### 达林顿晶体管驱动器
贸泽:
达林顿晶体管 Hi-Vltg Hi-Crnt Darl Transistor Array
艾睿:
Trans Darlington NPN 50V 0.5A Automotive 16-Pin SOIC T/R
安富利:
Trans Darlington NPN 50V 0.5A 16-Pin SOIC T/R
Chip1Stop:
Trans Darlington NPN 50V 0.5A Automotive 16-Pin SOIC T/R
Verical:
Trans Darlington NPN 50V 0.5A Automotive 16-Pin SOIC T/R
力源芯城:
高电压,大电流达林顿晶体管阵列
输出接口数 7
极性 NPN
击穿电压集电极-发射极 50 V
驱动器/包 7
集电极最大允许电流 0.5A
输出电流Max 500 mA
额定功率Max 950 mW
工作温度Max 105 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
长度 9.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-16
工作温度 -40℃ ~ 105℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ULQ2004ATDRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
ULN2003AIDR 德州仪器 | 完全替代 | ULQ2004ATDRQ1和ULN2003AIDR的区别 |
ULN2003AIPWR 德州仪器 | 完全替代 | ULQ2004ATDRQ1和ULN2003AIPWR的区别 |
ULQ2004ATDRG4Q1 德州仪器 | 完全替代 | ULQ2004ATDRQ1和ULQ2004ATDRG4Q1的区别 |
