UWX1V100MCL1GB

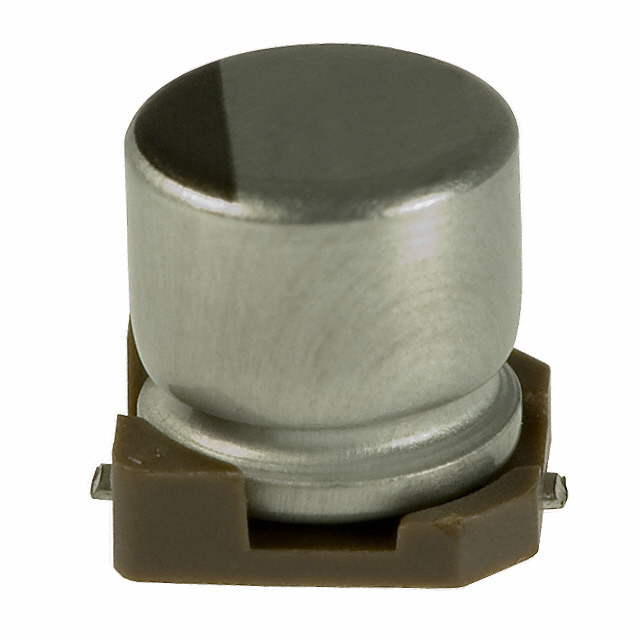

NICHICON  UWX1V100MCL1GB  铝电解电容, 表面贴装, WX系列, 10 µF, 35 V, Radial Can - SMD, 5 mm

WX 系列

WX 铝电解器系列是 5.5mmL 芯片类型

设计用于表面安装到高密度 PC 板上

适用于自动安装机器，用输送带送料

85°C 时加载寿命为 2000 小时

符合 RoHS 指令 2011/65/EU

得捷:
CAP ALUM 10UF 20% 35V SMD

立创商城:
10uF ±20% 35V

欧时:
Nichicon 铝电解电容器 WX 系列 35V dc 10μF 表面安装器件 UWX1V100MCL1GB, ±20%容差, 最高+85°C

贸泽:
Aluminum Electrolytic Capacitors - SMD 35volts 10uF 5x5.4 20%

e络盟:
铝电解电容, 表面贴装, Radial Can - SMD, 10 µF, 35 V, WX系列, 2000 hours @ 85°C

艾睿:
If you need to filter lower signal frequencies, then this electrolytic UWX1V100MCL1GB aluminum capacitor, developed by Nichicon, is the tool you need. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This product is 5.4 mm tall with a diameter of 5 mm. It has a tolerance of 20%. Its leakage current is 3.5@2Min μA. Its capacitance value is 10uF.

Allied Electronics:
10uF 35 V Aluminium Electrolytic Capacitor; WX Series 2000h 5 Dia. x 5.5mm

安富利:
Cap Aluminum 10uF 35V 20% 5 X 5.4mm SMD 29mA 2000h 85°C T/R

Chip1Stop:
Cap Aluminum Lytic 10uF 35V 20% 5 X 5.4mm SMD 29mA 2000h 85℃ T/R

TME:
Capacitor: electrolytic; SMD; 10uF; 35VDC; Ø5x5.4mm; ±20%; 2000h

Verical:
Cap Aluminum Lytic 10uF 35V 20% 5 X 5.4mm SMD 29mA 2000h 85C Automotive T/R

Newark:
# NICHICON  UWX1V100MCL1GB  SMD Aluminum Electrolytic Capacitor, Radial Can - SMD, 10 µF, 35 V, WX Series
