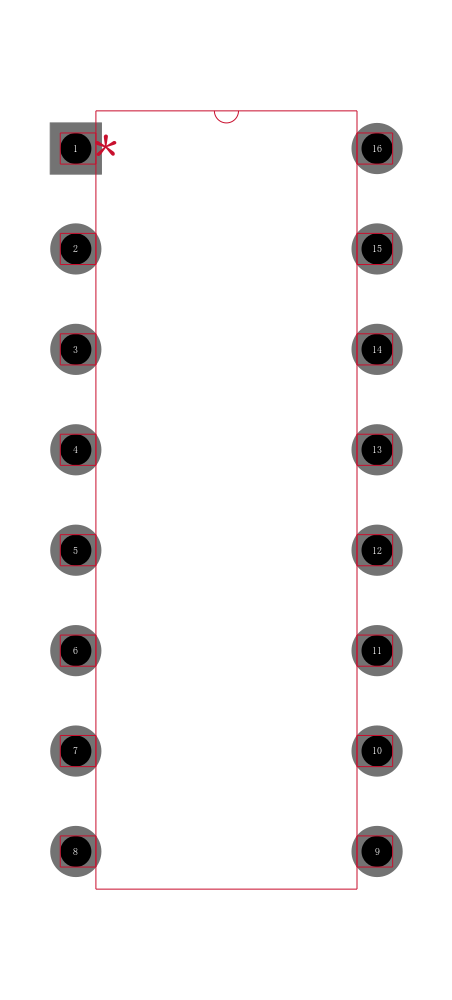

支持 3V 输入电压且具有较低成本的 50V、7 通道达林顿阵列 16-PDIP -40 to 105
The ULN2003B device is a high-voltage, high-current Darlington transistor array. This device consists of seven NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500 mA. The Darlington pairs can be paralleled for higher current capability.
The ULN2003B has a 2.7-kΩ series base resistor for each Darlington pair for operation directly with TTL or CMOS devices.
得捷:
IC PWR RELAY 7NPN 1:1 16DIP
立创商城:
ULN2003BN
德州仪器TI:
50-V, 7-ch darlington array with 3-V input capability and low cost
艾睿:
Amplify your current using Texas Instruments&s; NPN ULN2003BN Darlington transistor in order to yield a higher current gain. This product&s;s maximum continuous DC collector current is 0.5 A. It has a maximum collector emitter saturation voltage of 1.1@100mA|1.3@200mA|1.6@350mA V. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This Darlington transistor array has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
Trans Darlington NPN 50V 0.5A 16-Pin PDIP Tube
Chip1Stop:
Trans Darlington NPN 0.5A 16-Pin PDIP Tube
Verical:
Trans Darlington NPN 50V 0.5A 16-Pin PDIP Tube
