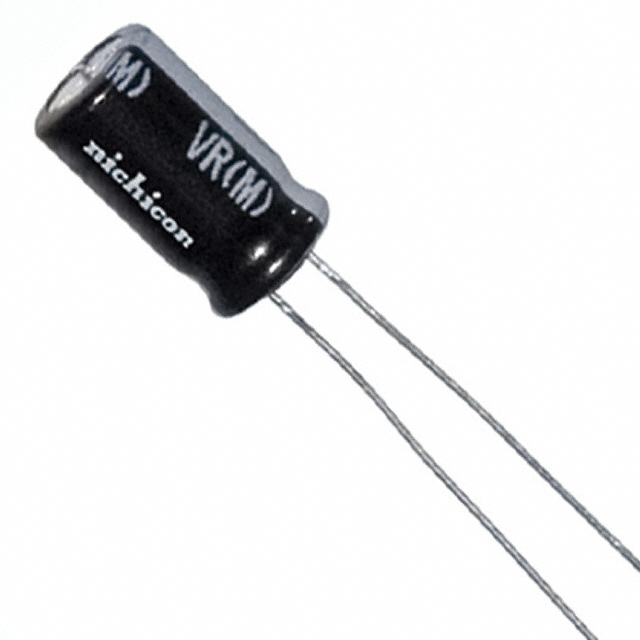

UVR1V470MDD1TA

VR 系列 47 uF 35 V ±20 % 通孔 径向 铝电解电容

47µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C

得捷:
CAP ALUM 47UF 20% 35V RADIAL

立创商城:
47uF ±20% 35V

艾睿:

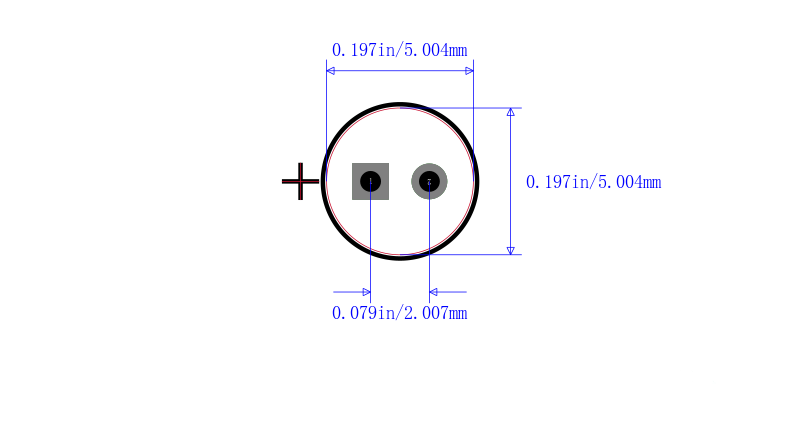

Who knew generating high heat for a given current level would be this easy? Pick up this unique electrolytic UVR1V470MDD1TA aluminum capacitor from Nichicon for its relatively high ESR! It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This product is 11 mm tall with a diameter of 5 mm. Its leakage current is 49.35@1Min|16.45@2Min μA. Its capacitance value is 47uF. It has a tolerance of 20%. This part has a lead diameter of 0.5 mm and a pitch of 5 mm. The UVR1V470MDD1TA aluminum electrolytic capacitor has a radial termination style.

Allied Electronics:
Capacitor

安富利:
Cap Aluminum 47uF 35V 20% 5 X 11mm Radial 5mm 130mA 2000 hr 85°C Ammo Pack

Chip1Stop:
Cap Aluminum Lytic 47uF 35V 20% 5 X 11mm Radial 5mm 130mA 2000h 85℃ Ammo Pack

Verical:
Cap Aluminum Lytic 47uF 35V 20% 5 X 11mm Radial 5mm 130mA 2000h 85C Ammo

Newark:
# NICHICON  UVR1V470MDD1TA  Electrolytic Capacitor, Miniature, 47 µF, 35 V, VR Series, ± 20%, Radial Leaded, 5 mm
