4 通道、1MHz、通用运算放大器 14-PDIP 0 to 70
description
The uA747 is a dual general-purpose operational amplifier featuring offset-voltage null capability. Each half is electrically similar to uA741.
No Frequency Compensation Required
Low Power Consumption
Short-Circuit Protection
Offset-Voltage Null Capability
Wide Common-Mode and Differential Voltage Ranges
No Latch-Up
Designed to Be Interchangeable With Fairchild µA747C and µA747M
得捷:
QUAD, 36-V, 1-MHZ OPERATIONAL AM
艾睿:
OP Amp Dual GP
Chip1Stop:
OP Amp Dual GP ±18V 14-Pin PDIP Tube
Verical:
OP Amp Dual GP ±18V 14-Pin PDIP Tube
Newark:
# TEXAS INSTRUMENTS UA747CNE4 Operational Amplifier, Dual, 2 Amplifier, 1 MHz, 0.5 V/µs, ± 9V to ± 15V, DIP, 14 Pins
德州仪器TI:
4-Channel, 1 MHz, general purpose op amp
供电电流 1.7 mA
电路数 2
通道数 2
耗散功率 0.8 W
共模抑制比 70 dB
输入补偿漂移 0.00 V/K
带宽 1 MHz
转换速率 500 mV/μs
增益频宽积 1 MHz
输入补偿电压 1 mV
输入偏置电流 80 nA
工作温度Max 70 ℃
工作温度Min 0 ℃
增益带宽 1 MHz
安装方式 Through Hole

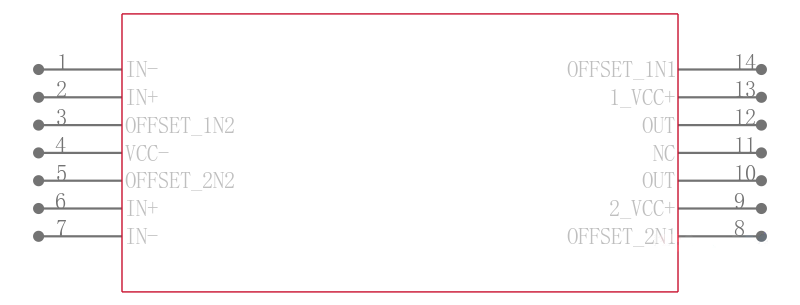

引脚数 14
封装 PDIP-14
封装 PDIP-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UA747CNE4 TI 德州仪器 | 当前型号 | 当前型号 |
UA747CN 德州仪器 | 类似代替 | UA747CNE4和UA747CN的区别 |
