UVZ1H101MPD1TD

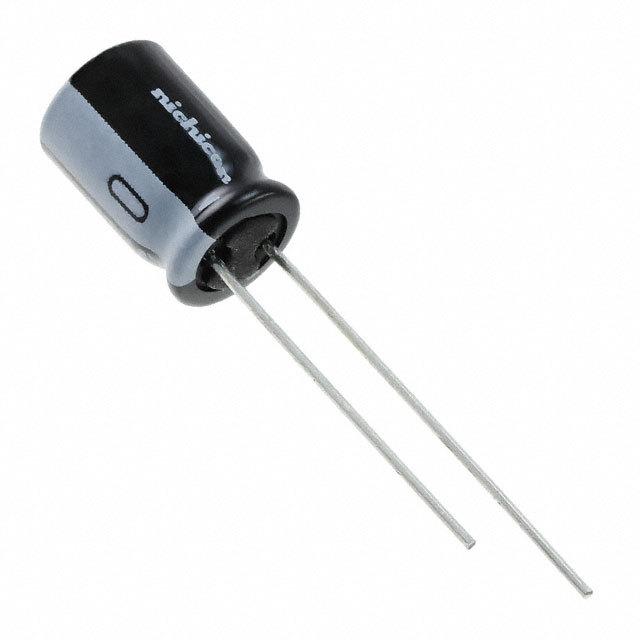

NICHICON  UVZ1H101MPD1TD  铝电解电容, 100uF, 50V, 20%, 径向引线, 整卷

**Features:

**

* Small Case Sizes as Same as VR Series, but Operating Over Wide Temperature Range of –55°c to +105°C**

**

* Compliant to the RoHS directive 2002/95/EC**

Specifications:

**

* Temperature Range: –55°C to +105°C**

**

* Rated Voltage Range: 6.3-450 V**

**

* Rated Capacitance Range: 0.1 to 33000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

得捷:
CAP ALUM 100UF 20% 50V RADIAL

立创商城:
100uF ±20% 50V

贸泽:
Aluminum Electrolytic Capacitors - Leaded 100uF 50V 20% 105c

e络盟:
铝电解电容, 100 µF, 50 V, UVZ Series, ± 20%, 径向引线, 8 mm

艾睿:
Cap Aluminum Lytic 100uF 50V 20% 8 X 11.5mm Radial 3.5mm 190mA 1000h 105°C Ammo

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 100uF 20% Radial 8X11.5 LS 3.5mm

Verical:
Cap Aluminum Lytic 100uF 50V 20% 8 X 11.5mm Radial 3.5mm 190mA 1000h 105C Ammo

Newark:
# NICHICON  UVZ1H101MPD1TD  Electrolytic Capacitor, 100 µF, 50 V, VZ Series, ± 20%, Radial Leaded, 8 mm
