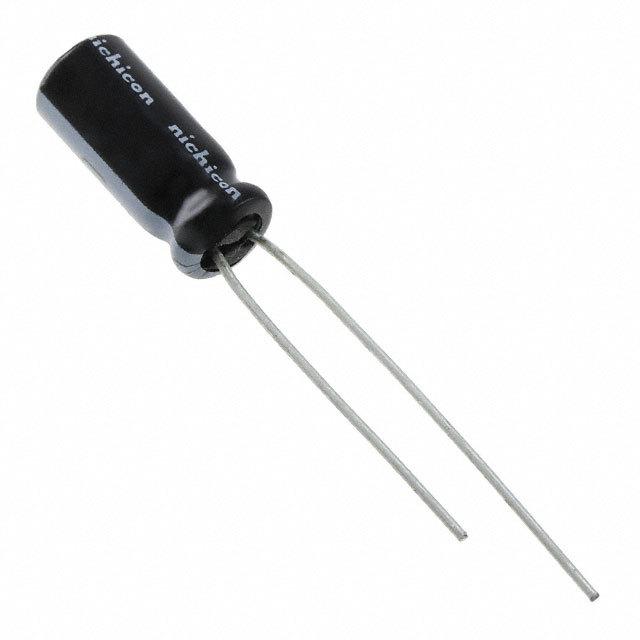

NICHICON UVZ1C100MDD1TD 铝电解电容, 10uF, 16V, 径向引线
Manufactured from , this electrolytic aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. Its leakage current is 4.8@1Min|1.6@2Min μA. The UVZ1C100MDD1TD aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. Its capacitance value is 10uF. This product is 11 mm tall with a diameter of 5 mm.
额定电压DC 16.0 V
电容 10 µF
容差 ±20 %
纹波电流 35 mA
纹波电流高频 35mA @120Hz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Through Hole
引脚数 2
封装 剪切带
引脚间距 2 mm
高度 11 mm
直径 5.00 mm
封装 剪切带
引脚间距 2 mm
介质材料 Aluminum Electrolytic
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
寿命（小时） 1000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UVZ1C100MDD1TD Nichicon 尼吉康 | 当前型号 | 当前型号 |
UVZ1C100MDD 尼吉康 | 完全替代 | UVZ1C100MDD1TD和UVZ1C100MDD的区别 |
UPR1C100MDH 尼吉康 | 完全替代 | UVZ1C100MDD1TD和UPR1C100MDH的区别 |
UPW1C100MDD1TD 尼吉康 | 类似代替 | UVZ1C100MDD1TD和UPW1C100MDD1TD的区别 |
