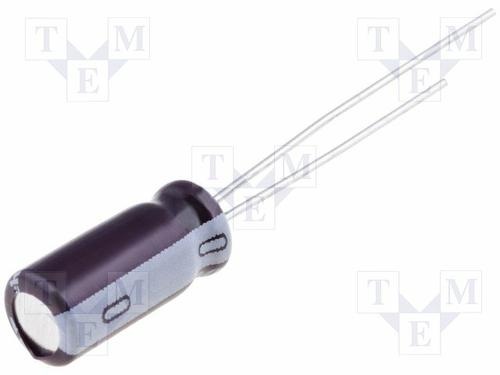

UPS1E4R7MDD

4.7uF ±20% 25V 160mA100kHz160mA Φ5mm

4.7 µF 25 V 铝电解器 径向，Can - 105°C 时为 2000 小时

得捷:
CAP ALUM 4.7UF 20% 25V RADIAL

立创商城:
4.7uF ±20% 25V

欧时:
Capacitor Electrolytic 4.7uF 25V Radial

艾睿:
This electrolytic UPS1E4R7MDD aluminum capacitor from Nichicon has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 11 mm tall with a diameter of 5 mm. This part has a lead diameter of 0.5 mm and a pitch of 2 mm. It has a tolerance of 20%. Its leakage current is 4@1Min μA. Its capacitance value is 4.7uF. The UPS1E4R7MDD aluminum electrolytic capacitor has a radial termination style.

Allied Electronics:
Capacitor Aluminum Electrolytic Cap4.7uF 25V 20% Radial 5X11 LS 2mm

TME:
Capacitor: electrolytic; low impedance; THT; 4.7uF; 25VDC; Ø5x11mm
