UPS1H2R2MDD1TD

Cap Aluminum Lytic 2.2uF 50V 20% 5 X 11mm Radial 2.5mm 55mA 2000H 105℃ Ammo

2.2 µF 50 V 铝电解器 径向，Can - 105°C 时为 2000 小时

得捷:
CAP ALUM 2.2UF 20% 50V RADIAL

艾睿:

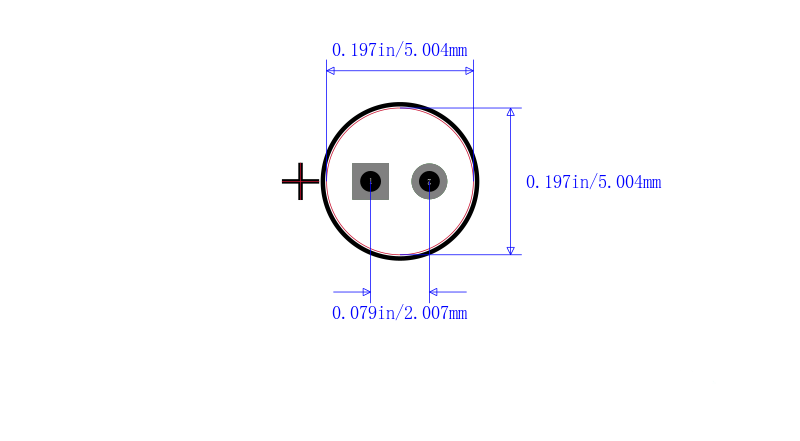

This electrolytic UPS1H2R2MDD1TD aluminum capacitor from Nichicon has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UPS1H2R2MDD1TD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. This product is 11 mm tall with a diameter of 5 mm. It has a tolerance of 20%. Its leakage current is 4@1Min μA. Its capacitance value is 2.2uF.

安富利:
Cap Aluminum 2.2uF 50V 20% 5 X 11mm Radial 2.5mm 55mA 2000 hr 105°C Ammo Pack
