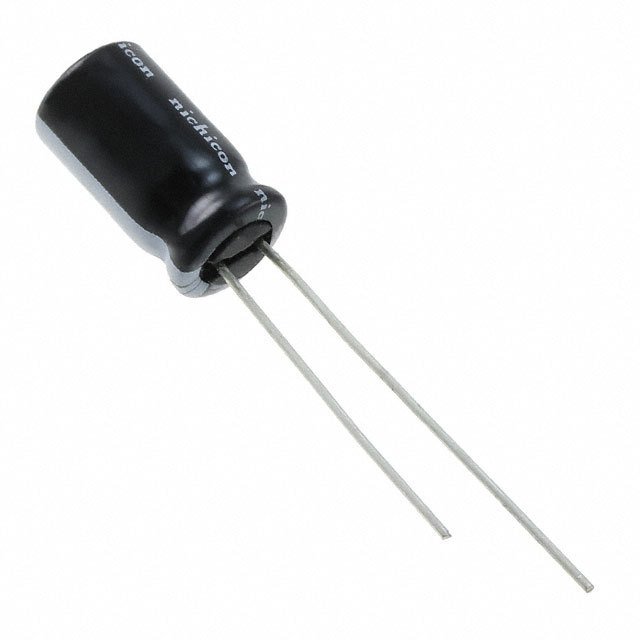

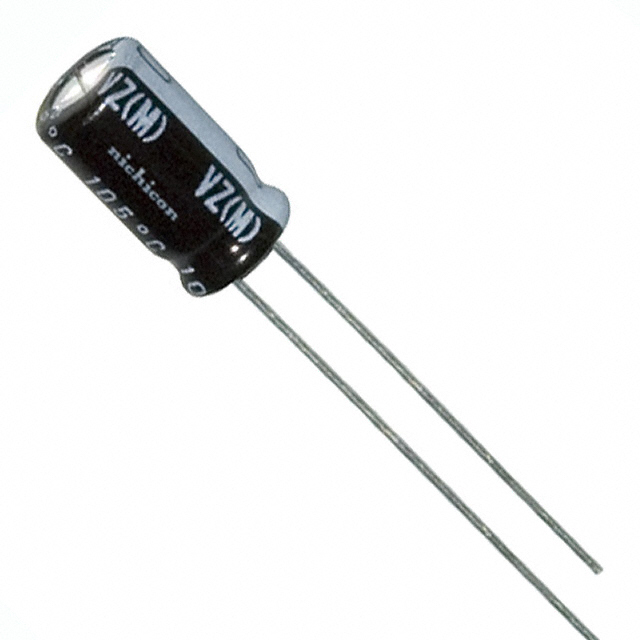

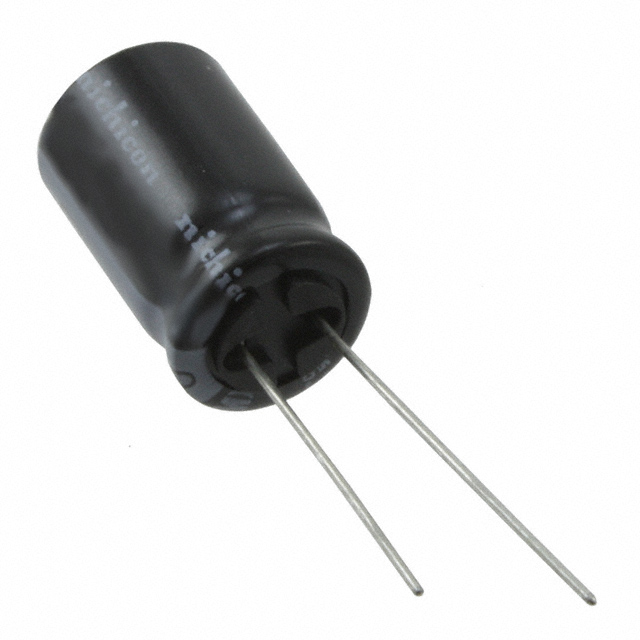

UVZ2C4R7MED

4.7uF ±20% 160V Φ6.3mm 11mm

**Features:

**

* Small Case Sizes as Same as VR Series, but Operating Over Wide Temperature Range of –55°c to +105°C**

**

* Compliant to the RoHS directive 2002/95/EC**

Specifications:

**

* Temperature Range: –55°C to +105°C**

**

* Rated Voltage Range: 6.3-450 V**

**

* Rated Capacitance Range: 0.1 to 33000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

立创商城:
4.7uF ±20% 160V

得捷:
CAP ALUM 4.7UF 20% 160V RADIAL

艾睿:
This electrolytic UVZ2C4R7MED aluminum capacitor from Nichicon has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 160 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 11 mm tall with a diameter of 6.3 mm. The UVZ2C4R7MED aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. Its leakage current is 115.2@1Min μA. Its capacitance value is 4.7uF. It has a tolerance of 20%.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 4.7uF 20% Radial 6.3X11 LS 2.5mm

安富利:
Cap Aluminum 4.7uF 160V 20% 6.3 X 11mm Radial 2.5mm 34mA 1000h 105°C Bulk

Chip1Stop:
Cap Aluminum Lytic 4.7uF 160V 20% 6.3 X 11mm Radial 2.5mm 34mA 1000h 105℃ Bulk

TME:
Capacitor: electrolytic; THT; 4.7uF; 160VDC; Ø6.3x11mm; ±20%; 1000h

Verical:
Cap Aluminum Lytic 4.7uF 160V 20% 6.3 X 11mm Radial 2.5mm 34mA 1000h 105C Bulk
