UVR1H331MPD1TD

NICHICON  UVR1H331MPD1TD  铝电解电容, 330uF, 50V, 径向引线

**Features:

**

* One Rank Smaller Case Sizes Than VX Series**

**

* Compliant to the RoHS directive 2002/95/EC**

Specifications:

**

* Temperature Range: –40°C to +85°C**

**

* Rated Voltage Range: 6.3-450 V**

**

* Rated Capacitance Range: 0.1 to 33000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

得捷:
CAP ALUM 330UF 20% 50V RADIAL

立创商城:
330uF ±20% 50V

艾睿:

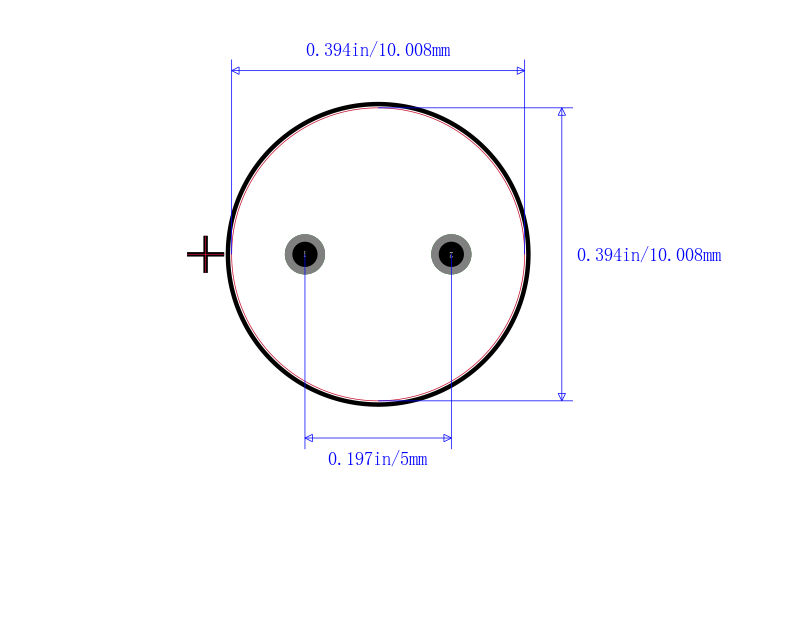

Use this relatively high equivalent series resistance electrolytic UVR1H331MPD1TD aluminum capacitor from Nichicon to generate high heat for a given current level. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. It has a tolerance of 20%. This product is 16 mm tall with a diameter of 10 mm. Its capacitance value is 330uF. The UVR1H331MPD1TD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 495@1Min|165@2Min μA. This part has a lead diameter of 0.6 mm and a pitch of 5 mm.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 330uF 50V 20%; Radial 10X16 LS 5 mm

安富利:
Cap Aluminum 330uF 50V 20% 10 X 16mm Radial Aluminum Cylindrical Can 5mm 590mA 2000 hr 85°C Ammo Pack

Verical:
Cap Aluminum Lytic 330uF 50V 20% 10 X 16mm Radial 5mm 590mA 2000h 85C Ammo

Newark:
# NICHICON  UVR1H331MPD1TD  Electrolytic Capacitor, Miniature, 330 µF, 50 V, VR Series, ± 20%, Radial Leaded, 10 mm
