UWT1C331MNL1GS

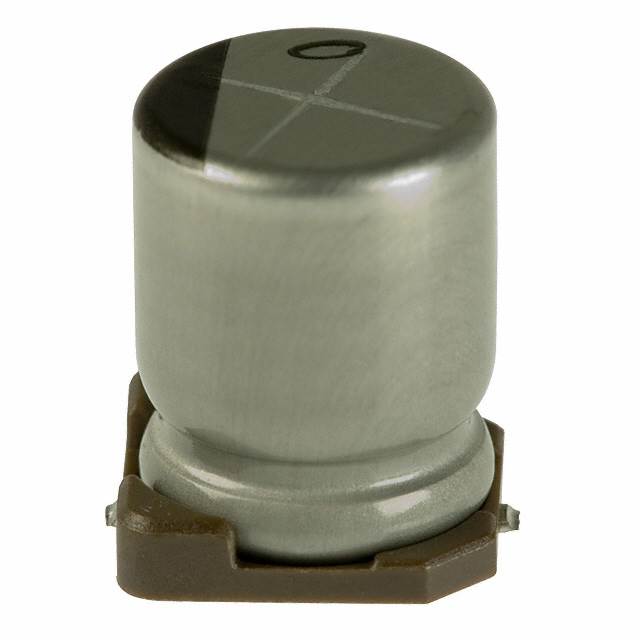

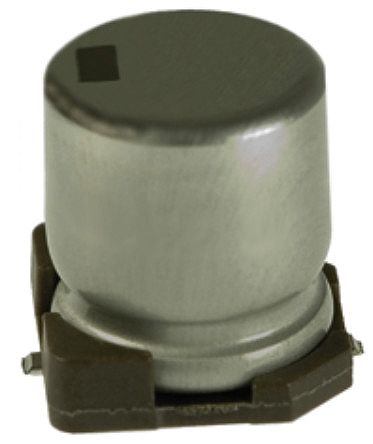

NICHICON  UWT1C331MNL1GS  铝电解电容, 330uF 16V SMD

铝电解器，WT 系列，105°C

宽工作范围 –55 到 +105°C 的片式工作。

额定电压范围为 4 至 50V

额定电容范围为 0.1 至 1500μF

设计用于表面安装到高密度 PC 板上。

适用于自动安装机器，用输送带送料。

符合 RoHS 指令 2011/65/EU。

WT 系列的无铅型号

得捷:
CAP ALUM 330UF 20% 16V SMD

立创商城:
330uF ±20% 16V

欧时:
Nichicon 铝电解电容器 WT 系列 16V dc 330μF 表面安装器件 UWT1C331MNL1GS, ±20%容差, 最高+105°C

e络盟:
铝电解电容, 330uF 16V SMD

艾睿:

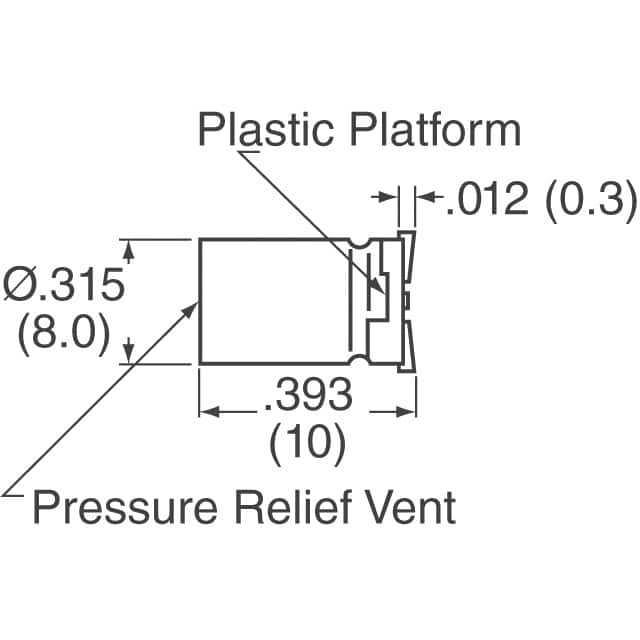

Since the anode is made out of pure aluminum, you&s;ll be able to filter lower frequencies with ease using Nichicon&s;s electrolytic UWT1C331MNL1GS aluminum capacitor. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 52.8@2Min μA. This product is 10 mm tall with a diameter of 8 mm. It has a tolerance of 20%. Its capacitance value is 330uF.

安富利:
Cap Aluminum 330uF 16V 20% 8 X 10mm SMD 195mA 1000 hr 105°C T/R

TME:

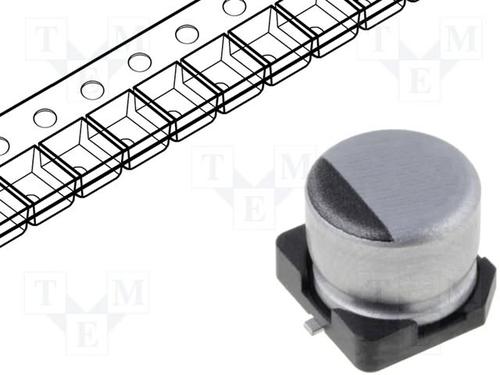

Capacitor: electrolytic; SMD; 330uF; 16VDC; Ø8x10mm; ±20%; 1000h

Verical:
Cap Aluminum Lytic 330uF 16V 20% 8 X 10mm SMD 195mA 1000h 105C Automotive T/R

Newark:
# NICHICON  UWT1C331MNL1GS  SMD Aluminum Electrolytic Capacitor, Radial Can - SMD, 330 µF, 16 V, WT Series
