UUD1H220MCL1GS

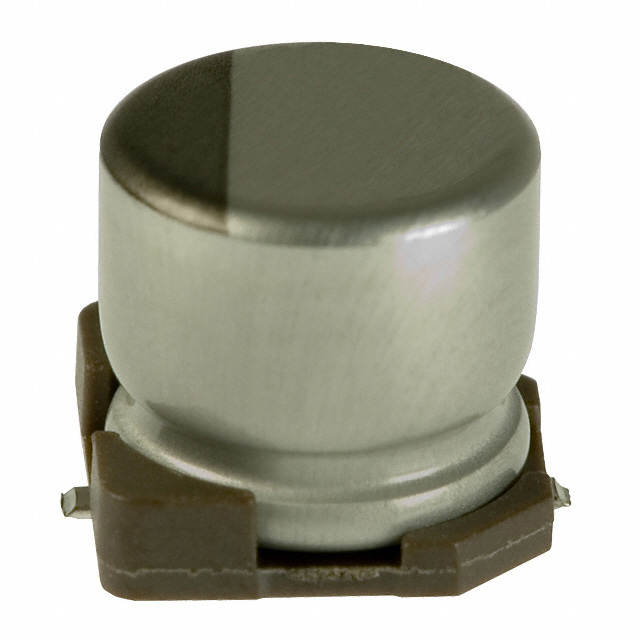

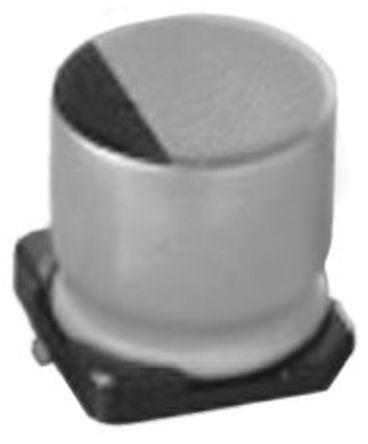

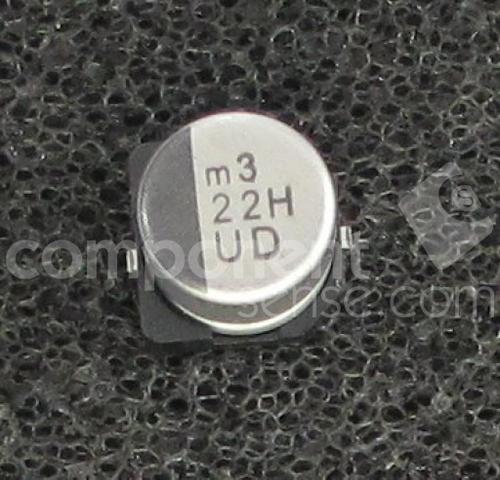

NICHICON  UUD1H220MCL1GS  铝电解电容, 表面贴装, UD系列, 22 µF, 50 V, Radial Can - SMD, 6.3 mm

铝电解器 UD 系列 105°C

长寿命表面安装型

无铅结构

欧时:
Nichicon 铝电解电容器 UD 系列 50V dc 22μF 表面安装器件 UUD1H220MCL1GS, ±20%容差, 最高+105°C

得捷:
CAP ALUM 22UF 20% 50V SMD

立创商城:
22uF ±20% 50V

艾睿:
Using this electrolytic UUD1H220MCL1GS aluminum capacitor from Nichicon in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 11@2Min μA. Its capacitance value is 22uF. This product is 5.8 mm tall with a diameter of 5 mm. It has a tolerance of 20%.

Allied Electronics:
22uF 50 V Aluminium Electrolytic Capacitor, UD Series 2000h 6.3 Dia. x 5.8mm

Chip1Stop:
Cap Aluminum Lytic 22uF 50V 20% 6.3 X 5.8mm SMD 165mA 2000h 105ÂÂ℃ T/R

Verical:
Cap Aluminum Lytic 22uF 50V 20% 6.3 X 5.8mm SMD 165mA 2000h 105C Automotive T/R

Newark:
# NICHICON  UUD1H220MCL1GS  SMD Aluminum Electrolytic Capacitor, Radial Can - SMD, 22 µF, 50 V, UD Series
