UPS840/TR13

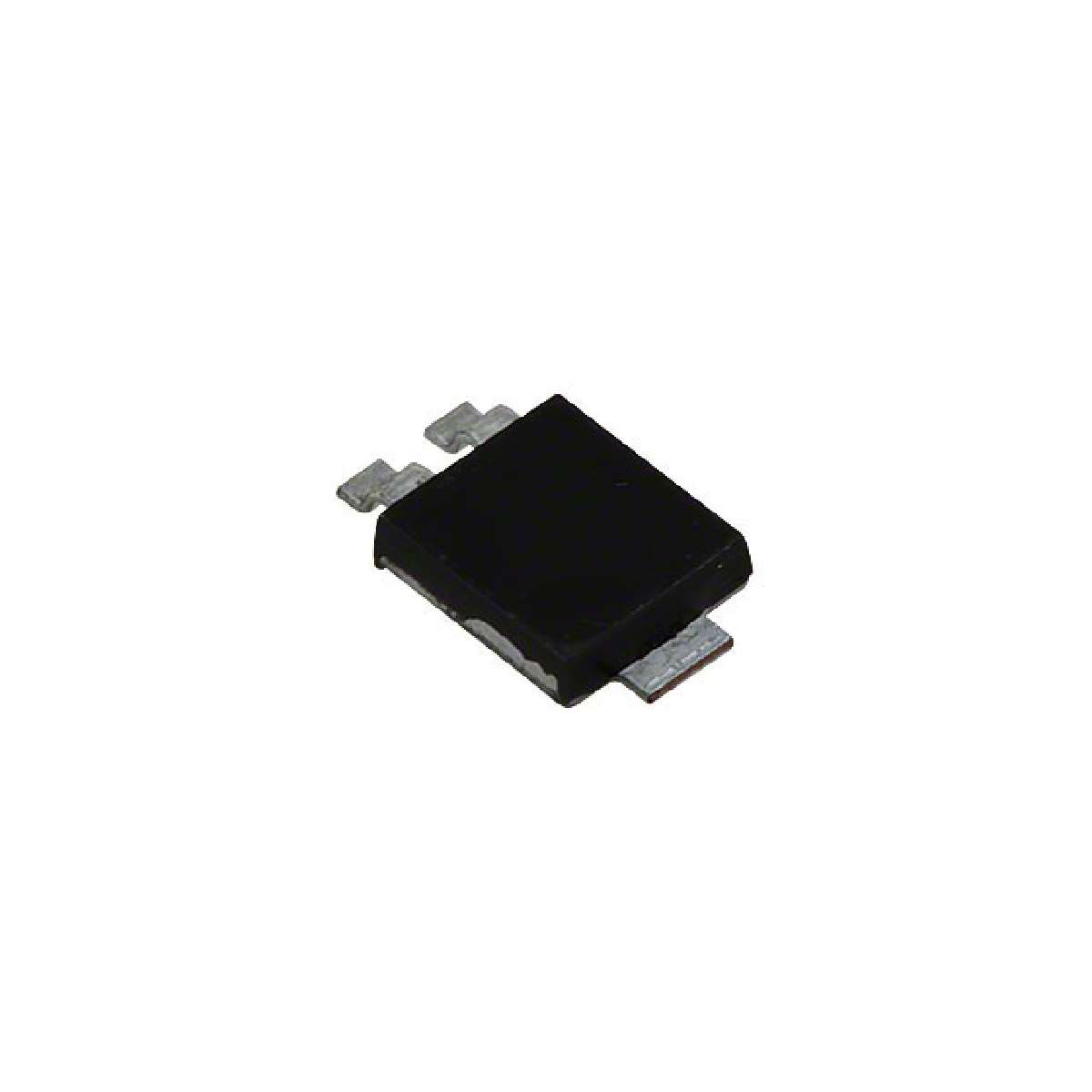

UPS840/TR13图片1
UPS840/TR13图片2
UPS840/TR13图片3
UPS840/TR13图片4
UPS840/TR13图片5
UPS840/TR13概述

Diode Schottky 40V 8A 3Pin2+Tab Power Mite T/R

The UPS840 offers an exceptionally small and powerful RoHS compliant package for a 40 V, 8 Amp Schottky rectifier.  Competing solutions typically come only in much larger packages.  It is an ideal, small footprint, surface mount solution with a full metallic bottom side and is compatible with automatic insertion equipment.  In combination with "s unique internal locking tab on the die, it provides a very low thermal resistance path to move heat out of the package.  The resulting lowering of junction temperature in the die provides for lower leakage current and power loss.

UPS840/TR13中文资料参数规格
技术参数

正向电压 450mV @8A

正向电压Max 450mV @8A

正向电流Max 8 A

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 3

封装 DO-216AA

外形尺寸

封装 DO-216AA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 Non-Compliant

含铅标准 Lead Free

数据手册

在线购买UPS840/TR13
型号: UPS840/TR13
描述:Diode Schottky 40V 8A 3Pin2+Tab Power Mite T/R
