UPJ1V680MED

PJ 系列 68 uF 35 V 20 % 通孔 径向 铝电解电容

铝电解器 径向，Can - 105°C 时为 2000 小时

立创商城:
68uF ±20% 35V

得捷:
CAP ALUM 68UF 20% 35V RADIAL

艾睿:

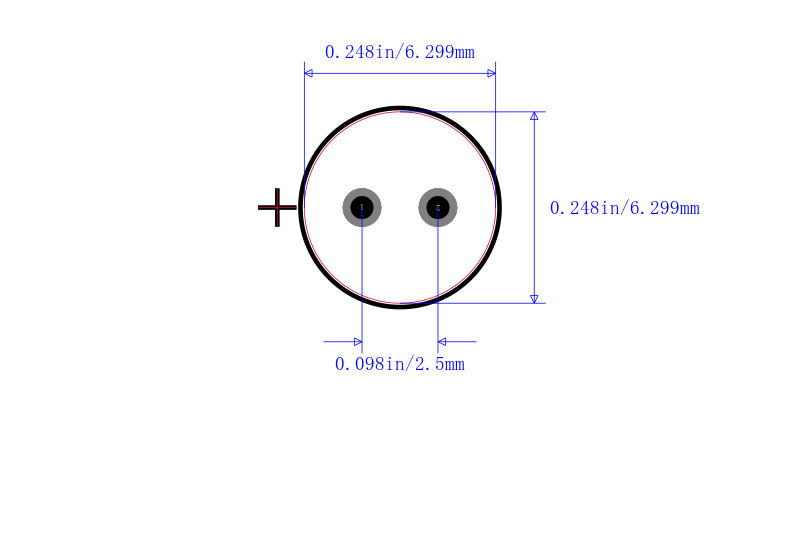

Choose this electrolytic UPJ1V680MED aluminum capacitor from Nichicon for its relatively high ESR. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. Its capacitance value is 68uF. It has a tolerance of 20%. Its leakage current is 71.4@1Min μA. The UPJ1V680MED aluminum electrolytic capacitor has a radial termination style. This product is 15 mm tall with a diameter of 6.3 mm.

安富利:
Cap Aluminum 68uF 35V 20% 6.3 X 15mm Radial 2.5mm 230mA 2000 hr 105°C Bulk

Verical:
Cap Aluminum Lytic 68uF 35V 20% 6.3 X 15mm Radial 2.5mm 230mA 2000h 105C Bulk
