56uF ±20% 50V 295mA100kHz295mA Φ6.3mm

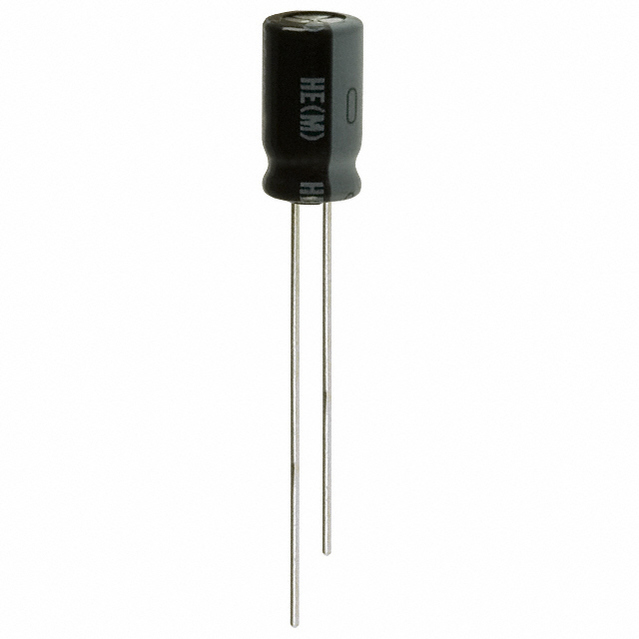

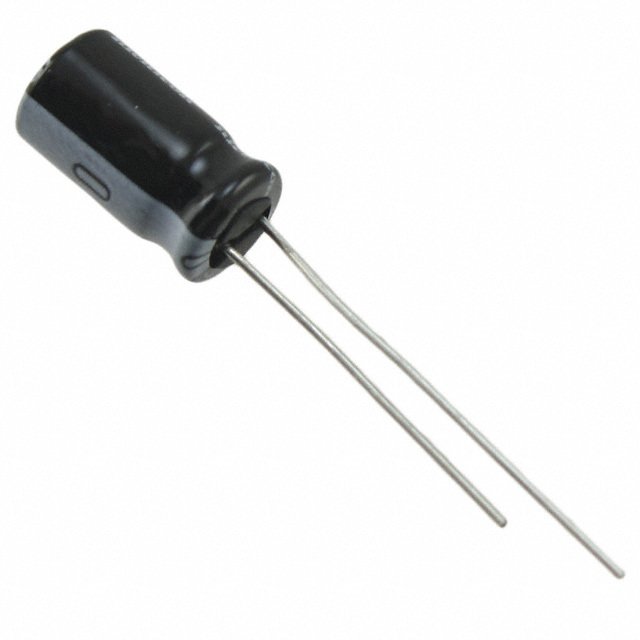

Since the anode is made out of pure aluminum, you"ll be able to filter lower frequencies with ease using "s electrolytic aluminum capacitor. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UHE1H560MED aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 56uF. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. This product is 11 mm tall with a diameter of 6.3 mm. Its leakage current is 28@2Min μA. It has a tolerance of 20%.
额定电压DC 50 V
电容 56 µF
等效串联电阻ESR 1.20 Ω
容差 ±20 %
产品系列 UHE
纹波电流 295 mA
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 50 V
安装方式 Through Hole
引脚数 2

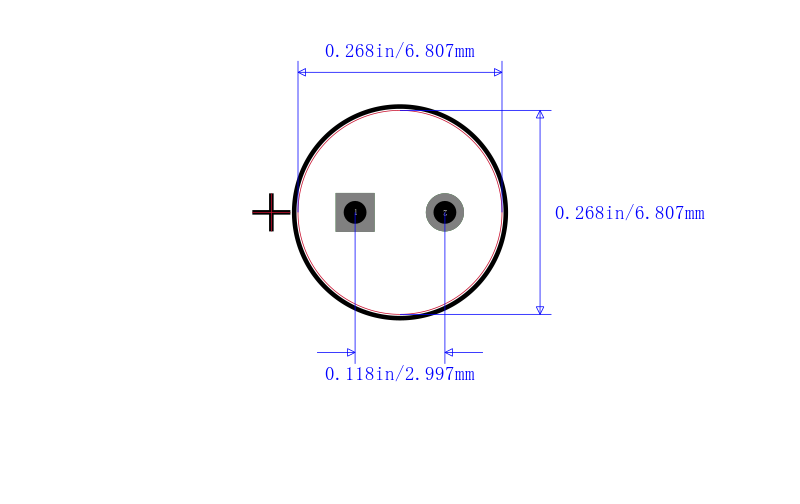

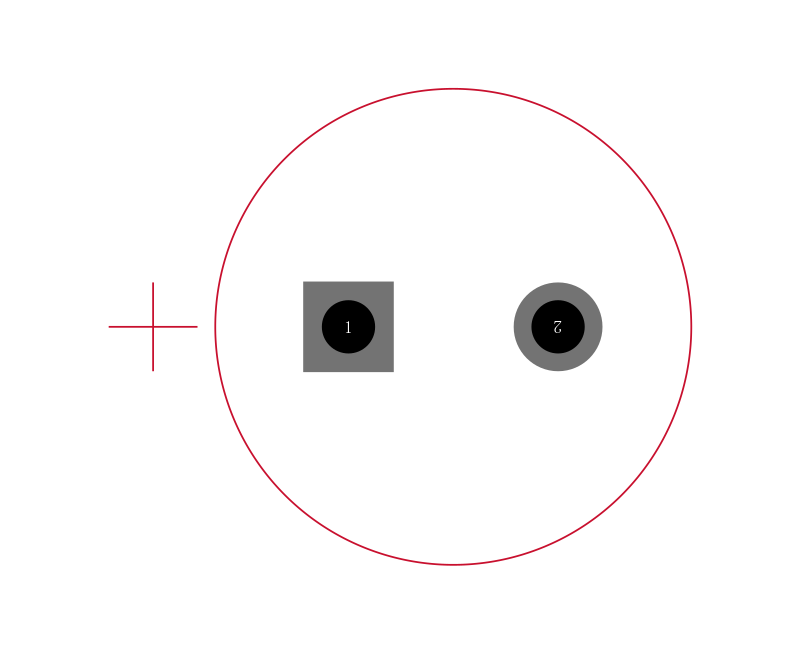

封装 Radial, CAN
引脚间距 2.5 mm
长度 11 mm
高度 11 mm
直径 6.30 mm
封装 Radial, CAN
引脚间距 2.5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 4000
寿命（小时） 5000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UHE1H560MED Nichicon 尼吉康 | 当前型号 | 当前型号 |
UHD1H560MED 尼吉康 | 类似代替 | UHE1H560MED和UHD1H560MED的区别 |
EKY-500ELL560MF11D 贵弥功 | 功能相似 | UHE1H560MED和EKY-500ELL560MF11D的区别 |
EKZE500ELL560MF11D 贵弥功 | 功能相似 | UHE1H560MED和EKZE500ELL560MF11D的区别 |
