UVZ2E3R3MPD

3.3uF ±20% 250V Φ8mm 11.5mm

**Features:

**

* Small Case Sizes as Same as VR Series, but Operating Over Wide Temperature Range of –55°c to +105°C**

**

* Compliant to the RoHS directive 2002/95/EC**

Specifications:

**

* Temperature Range: –55°C to +105°C**

**

* Rated Voltage Range: 6.3-450 V**

**

* Rated Capacitance Range: 0.1 to 33000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

得捷:
CAP ALUM 3.3UF 20% 250V RADIAL

立创商城:
3.3uF ±20% 250V

艾睿:

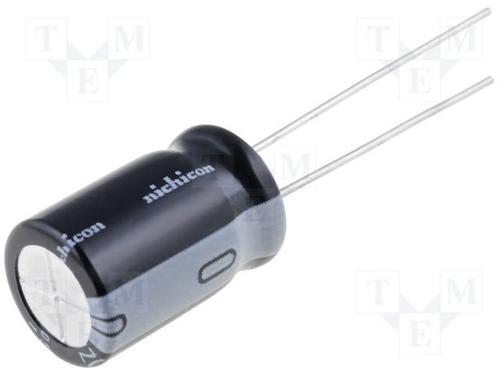

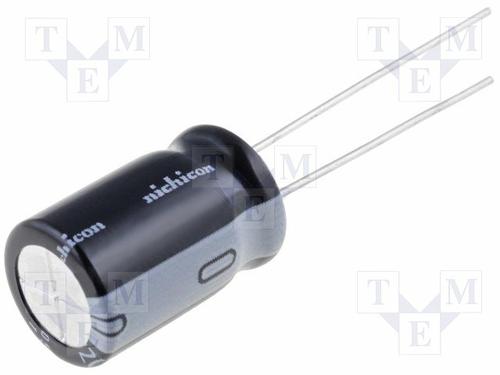

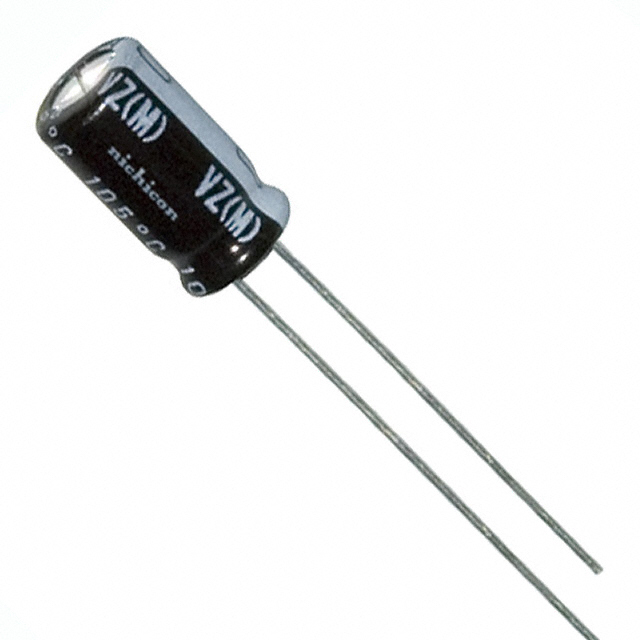

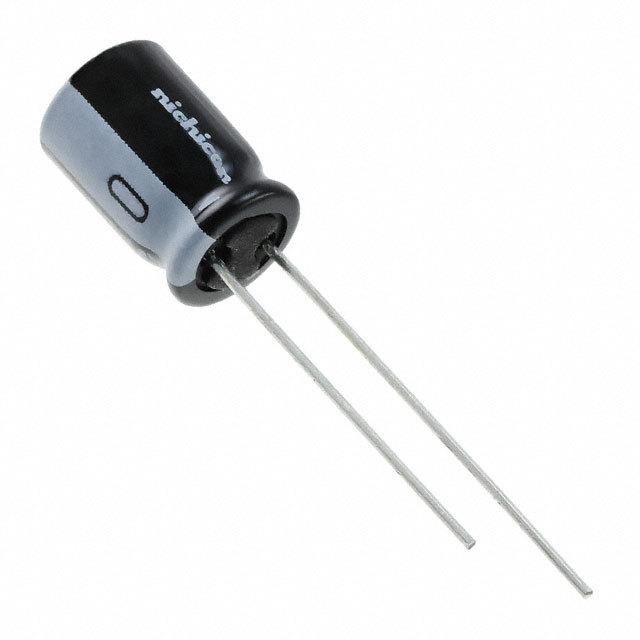

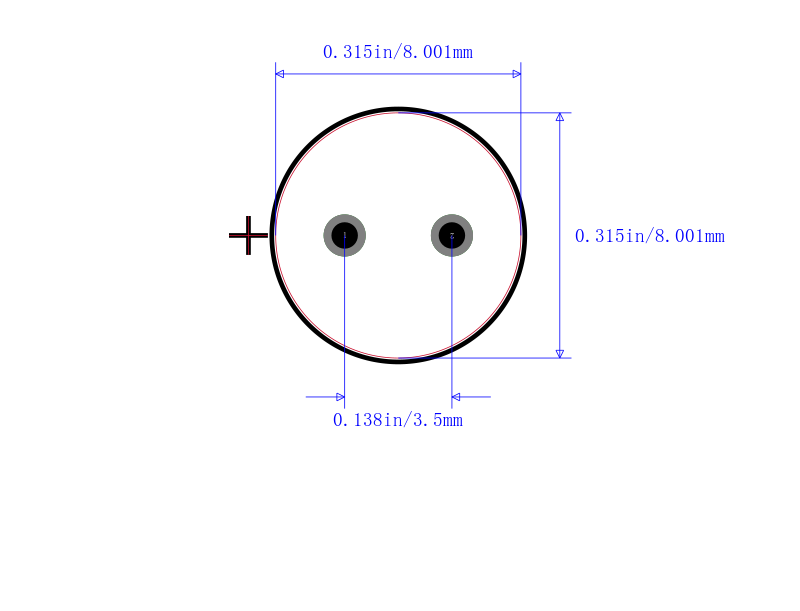

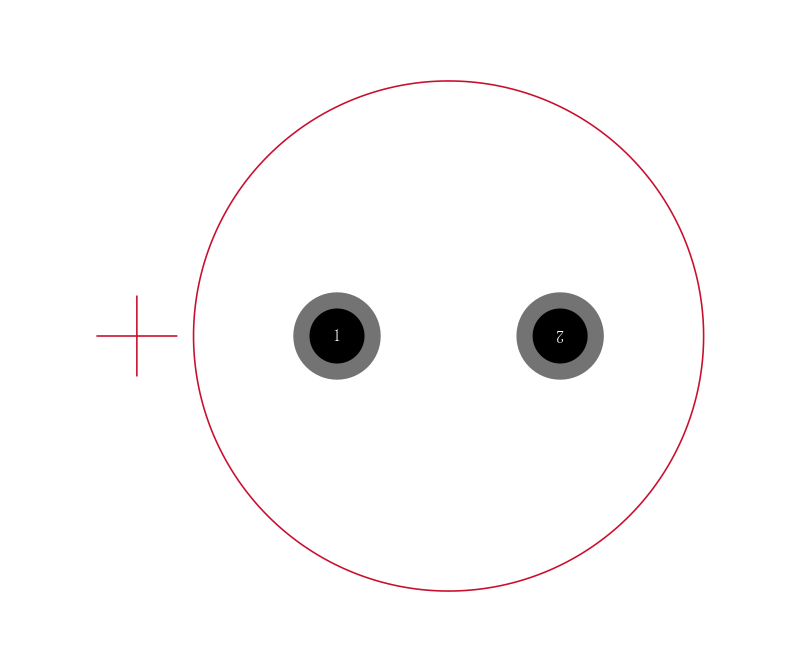

Using this electrolytic UVZ2E3R3MPD aluminum capacitor from Nichicon in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 250 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. This product is 11.5 mm tall with a diameter of 8 mm. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. Its capacitance value is 3.3uF. Its leakage current is 122.5@1Min μA. The UVZ2E3R3MPD aluminum electrolytic capacitor has a radial termination style.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 3.3uF 20% Radial 8X11.5 LS 3.5mm

安富利:
Cap Aluminum 3.3uF 250V 20% 8 X 11.5mm Radial Aluminum Cylindrical Can 3.5mm 32mA 1000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum Lytic 3.3uF 250V 20% 8 X 11.5mm Radial 3.5mm 32mA 1000h 105C Bulk

TME:
Capacitor: electrolytic; THT; 3.3uF; 250VDC; Ø8x11.5mm; ±20%; 1000h

Verical:
Cap Aluminum Lytic 3.3uF 250V 20% 8 X 11.5mm Radial 3.5mm 32mA 1000h 105C Bulk

Newark:
# NICHICON  UVZ2E3R3MPD  Electrolytic Capacitor, 3.3 µF, 250 V, VZ Series, ± 20%, Radial Leaded, 8 mm
