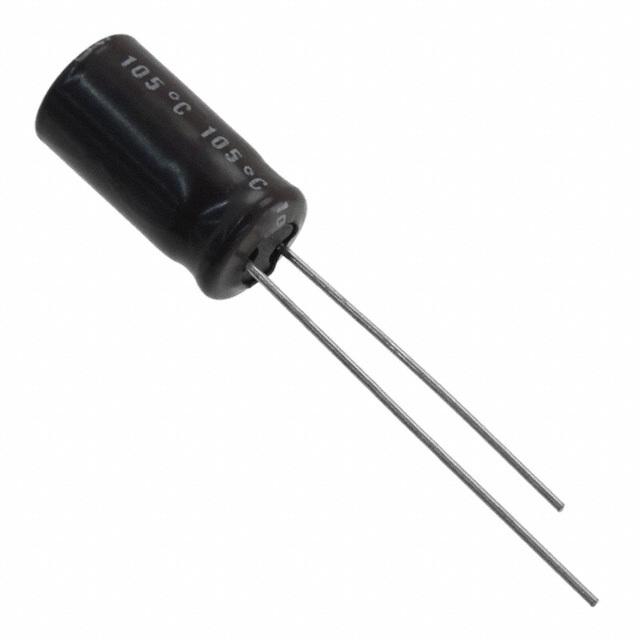

NICHICON UPM1E221MPD1TD 铝电解电容, 220uF, 25V, 径向引线
Choose this electrolytic aluminum capacitor from for its relatively high ESR. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 15 mm tall with a diameter of 8 mm. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. It has a tolerance of 20%. Its leakage current is 165@1Min μA. The UPM1E221MPD1TD aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 220uF.
额定电压DC 25 V
电容 220 µF
容差 ±20 %
纹波电流 455 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN

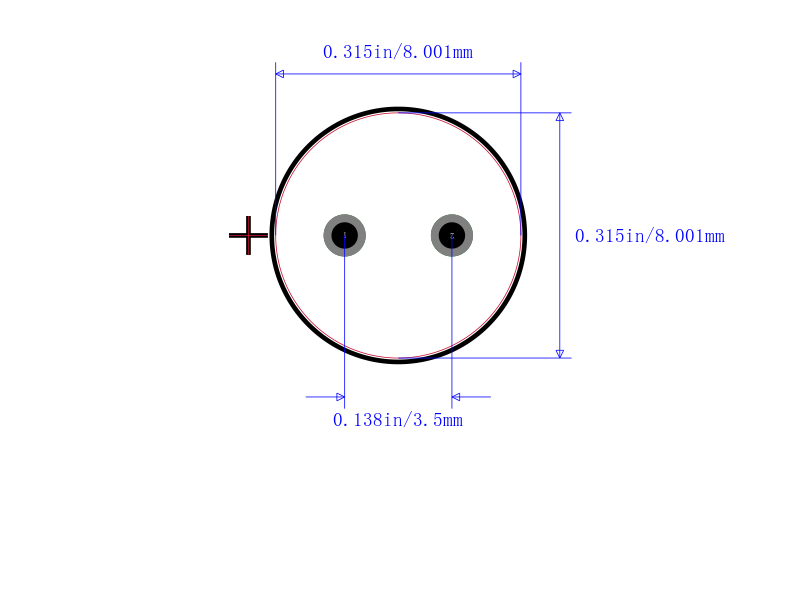

引脚间距 3.5 mm
长度 11.5 mm
高度 15 mm
直径 8.00 mm
封装 Radial, CAN
引脚间距 3.5 mm
介质材料 Aluminum Electrolytic
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命（小时） 3000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UPM1E221MPD1TD Nichicon 尼吉康 | 当前型号 | 当前型号 |
UPM1E221MPD 尼吉康 | 功能相似 | UPM1E221MPD1TD和UPM1E221MPD的区别 |
EEU-FC1E221 松下 | 功能相似 | UPM1E221MPD1TD和EEU-FC1E221的区别 |
EEUFC1E221 松下 | 功能相似 | UPM1E221MPD1TD和EEUFC1E221的区别 |
