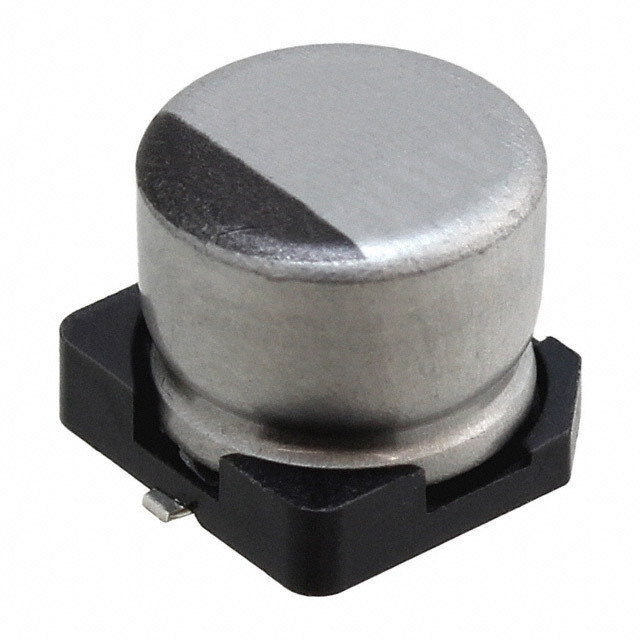

铝质电解电容器-SMD 25volts 22uF 105c
22 µF 25 V 铝电解器 径向,Can - SMD - 105°C 时为 1000 小时
立创商城:
22uF ±20% 25V
得捷:
CAP ALUM 22UF 20% 25V SMD
贸泽:
铝质电解电容器-SMD 25volts 22uF 105c
艾睿:
Since the anode is made out of pure aluminum, you&s;ll be able to filter lower frequencies with ease using Nichicon&s;s electrolytic UWF1E220MCL1GB aluminum capacitor. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its leakage current is 5.5@2Min μA. Its capacitance value is 22uF. This product is 5.4 mm tall with a diameter of 6.3 mm.
安富利:
Cap Aluminum 22uF 25V 20% 6.3 X 5.4mm SMD 115mA 1000 hr 105°C T/R
Chip1Stop:
Cap Aluminum Lytic 22uF 25V 20% 6.3 X 5.4mm SMD 115mA 1000h 105ÂÂ℃ T/R
Verical:
Cap Aluminum Lytic 22uF 25V 20% 6.3 X 5.4mm SMD 115mA 1000h 105C Automotive T/R
额定电压DC 25.0 V
电容 22 µF
等效串联电阻ESR 1.3 Ω
容差 ±20 %
产品系列 UWF
纹波电流 115 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
引脚数 2
封装 SMD
长度 5.4 mm
高度 5.4 mm
直径 6.30 mm
封装 SMD
介质材料 Aluminum Electrolytic
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
寿命(小时) 1000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UWF1E220MCL1GB Nichicon 尼吉康 | 当前型号 | 当前型号 |
UWF1V220MCL1GB 尼吉康 | 类似代替 | UWF1E220MCL1GB和UWF1V220MCL1GB的区别 |
EEE-FC1E220AP 松下 | 功能相似 | UWF1E220MCL1GB和EEE-FC1E220AP的区别 |
EEE-HA1E220P 松下 | 功能相似 | UWF1E220MCL1GB和EEE-HA1E220P的区别 |
