UES702

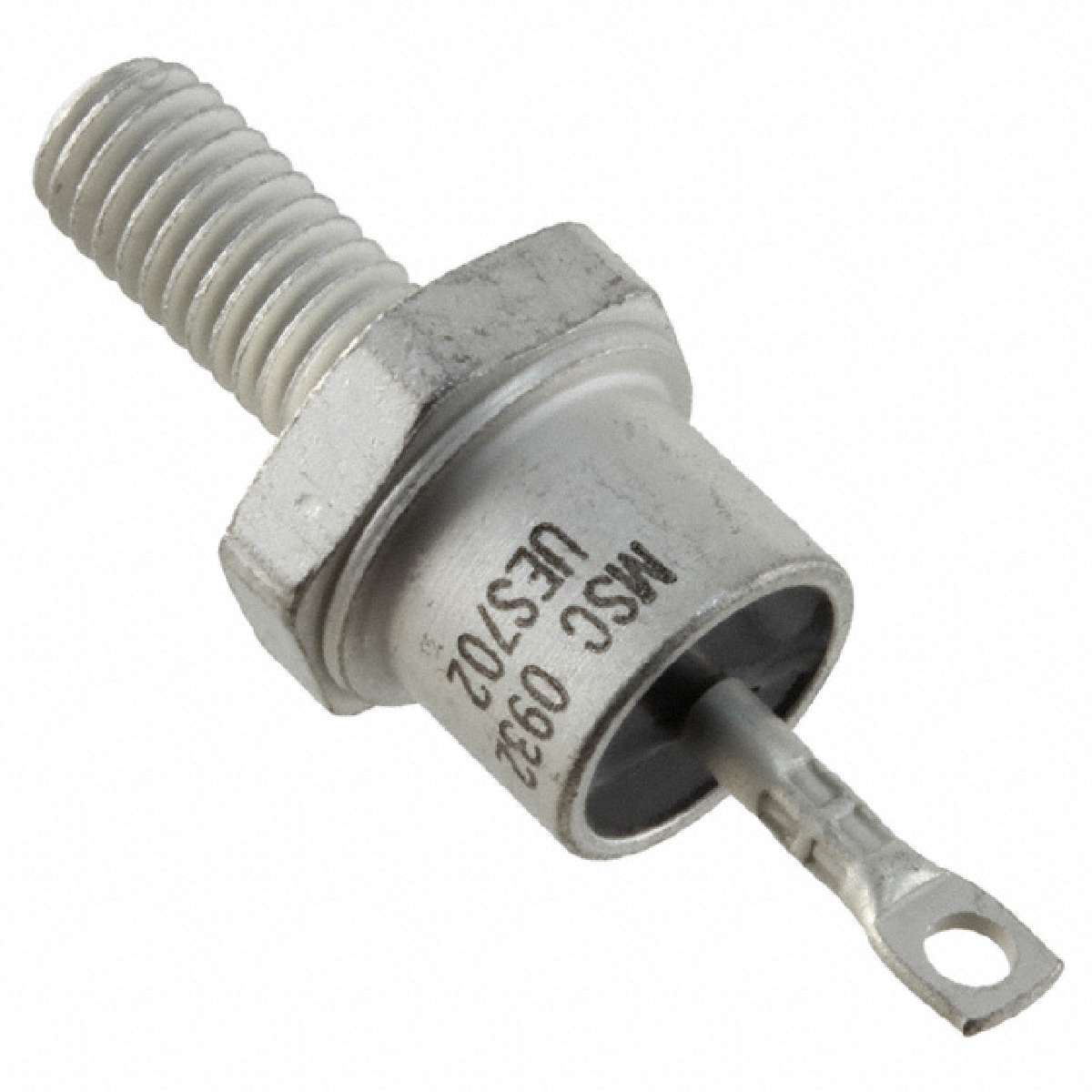

UES702图片1
UES702图片2
UES702图片3
UES702图片4
UES702概述

整流器 RECTIFIERS

The UES701HR through UES703HR series of ultrafast high-efficiency rectifiers is specifically designed for operation in power switching circuits operating at frequencies of 20 kHz or higher. The low thermal resistance and forward voltage drop of this series allows the user to replace larger DO-5 packaged devices in many applications. also offers numerous other products to meet higher and lower power voltage regulation applications.

UES702中文资料参数规格
技术参数

额定电压DC 100 V

额定电流 25.0 A

输出电流 ≤25.0 A

正向电压 950mV @25A

极性 Standard

反向恢复时间 35 ns

正向电流 25000 mA

正向电压Max 950mV @25A

正向电流Max 25 A

工作温度Max 150 ℃

工作温度Min -55 ℃

封装参数

引脚数 2

封装 DO-4

外形尺寸

封装 DO-4

其他

产品生命周期 Obsolete

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买UES702
型号: UES702
描述:整流器 RECTIFIERS
替代型号UES702
型号/品牌 代替类型 替代型号对比

UES702

Microsemi 美高森美

当前型号

当前型号

VHE702

美高森美

功能相似

UES702和VHE702的区别

W3110

国巨

功能相似

UES702和W3110的区别
