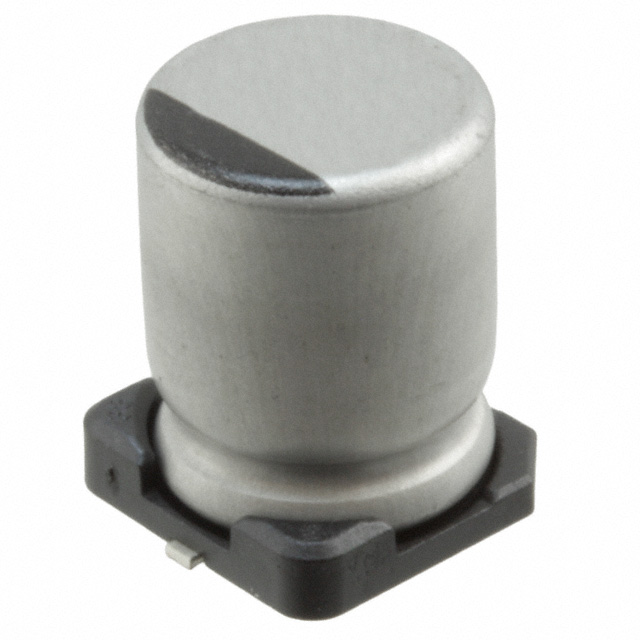

UWG1E101MNL1GS

WG 系列适用于使用传送带的自动安装机器 Capacitance tolerance | 20 % ---|--- Temperature range | -55 to +105 °C Leakage current | 0.01CV or 3μA whichever is greater Life expectancy at 105°C | 1000 hrs ### 表面安装 105°C 系列

WG 系列

适用于使用传送带的自动安装机器

得捷:
CAP ALUM 100UF 20% 25V SMD

欧时:
### WG 系列适用于使用传送带的自动安装机器 Capacitance tolerance | 20 % ---|--- Temperature range | -55 to +105 °C Leakage current | 0.01CV or 3μA whichever is greater Life expectancy at 105°C | 1000 hrs ### 表面安装 105°C 系列

立创商城:
100uF ±20% 25V

艾睿:
Manufactured from Nichicon, this electrolytic UWG1E101MNL1GS aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 100uF. Its leakage current is 25@2Min μA. It has a tolerance of 20%. This product is 7.7 mm tall with a diameter of 6.3 mm.

Allied Electronics:
100uF 25 V dc Aluminium Electrolytic Capacitor, WG Series 1000h 8 Dia. x 10mm

安富利:
Cap Aluminum 100uF 25V 20% 8 X 10mm SMD 450mA 1000 hr 105°C T/R

Chip1Stop:
Cap Aluminum Lytic 100uF 25V 20% 8 X 10mm SMD 280mA 2000h 105ÂÂ℃ T/R

Verical:
Cap Aluminum Lytic 100uF 25V 20% 8 X 10mm SMD 450mA 1000h 105C Automotive T/R
