USB-B-S-F-W-TH

Conn USB F 4POS 2.5mm Solder RA Thru-Hole 4 Terminal 1Port Tray

USB-B（USB TYPE-B） USB 2.0 插座 4 位 通孔，直角

欧时:

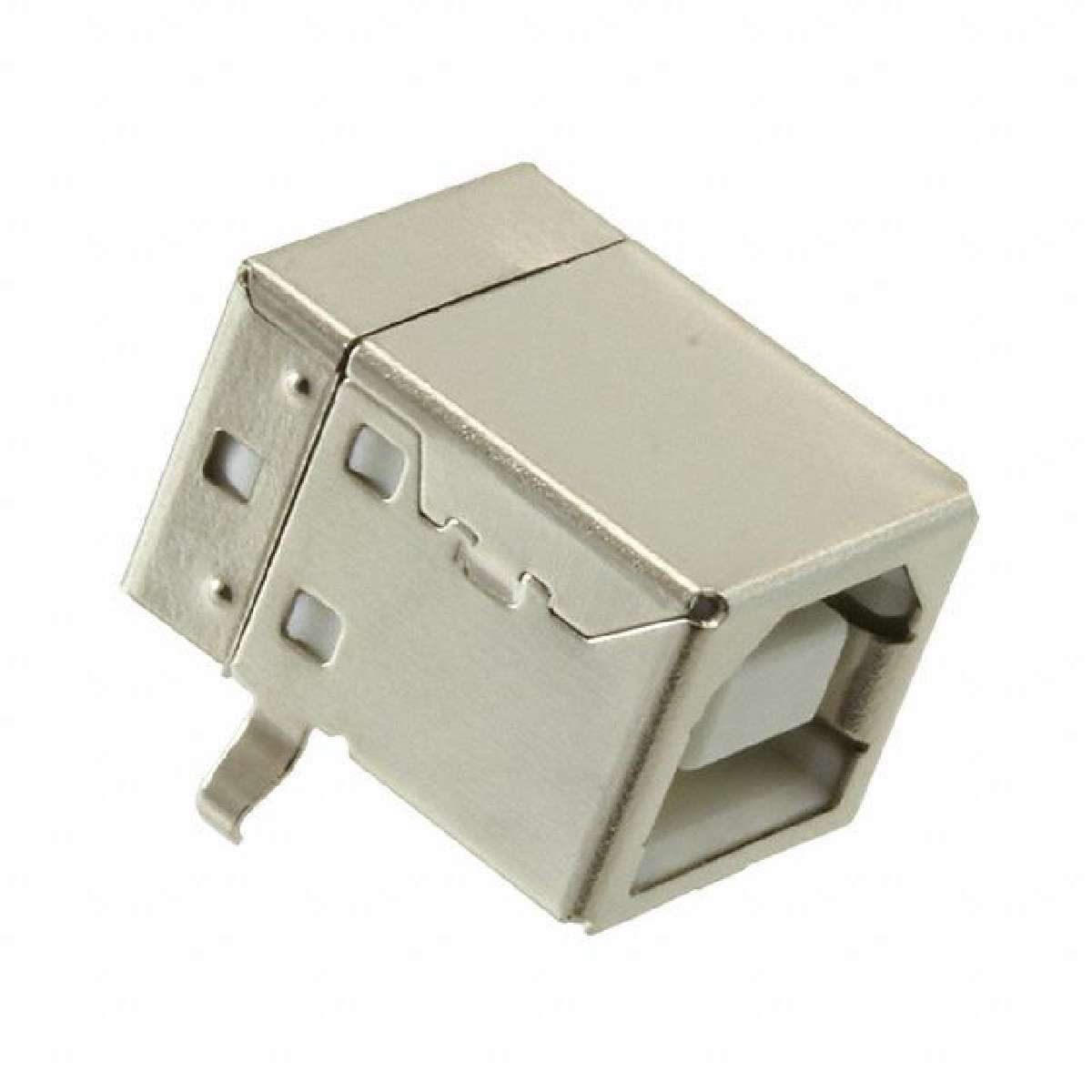

PCB mount type B USB receptacle

得捷:
CONN RCPT USB2.0 TYPEB 4POS R/A

艾睿:
Use the usb 2.0 type b USB-B-S-F-W-TH audio and video connector from Samtec to make your application work properly. This F connector&s;s 4 contacts that are made out of phosphor bronze and plated with gold. It has a maximum voltage rating of 30 VAC. It has a right angle body orientation. Its pitch is 2.5 mm. This connector has a single port. It has a female type gender. This device has a maximum current rating of 1 A/contact. USB-B-S-F-W-TH is housed in thermoplastic. This component will be shipped in tray format. Its 4 terminals use the solder termination method. This product is 12.1 mm long, 10.8 mm tall and 16.2 mm deep. This part has a minimum operating temperature of -50 °C and a maximum of 85 °C.

安富利:
Conn USB F 4 POS 2.5mm Solder RA Thru-Hole 4 Terminal 1 Port Tray

Chip1Stop:
Conn USB 2.0 Type B F 4 POS 2.5mm Solder RA Thru-Hole 4 Terminal 1 Port Tray
