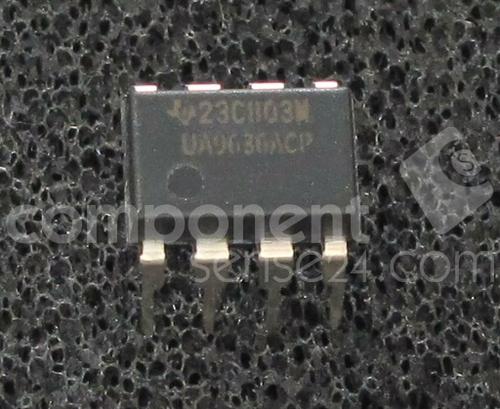

UA9636ACP

带可调摆率双通道驱动器 DUAL LINE DRIVER WITH ADJUSTABLE SLEW RATE

**description**

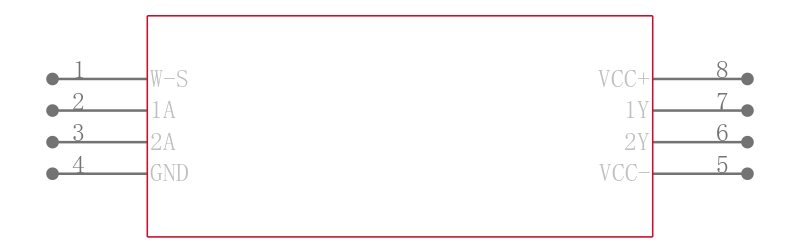

The uA9636AC is a dual, single-ended line driver designed to meet ANSI Standards EIA/A-423-B and EIA/TIA-232-E and ITU Recommendations V.10 and V.28. The slew rates of both amplifiers are controlled by a single external resistor, RWS, connected between the wave-shape-control W-S terminal and GND. Output current limiting is provided. Inputs are compatible with TTL and CMOS and are diode protected against negative transients. This device operates from ±12 V and is supplied in an 8-pin package. The uA9636AC is characterized for operation from 0°C to 70°C.

**Meets or Exceeds the Requirements of ****ANSI Standards EIA/TIA-423-B and -232-E ****and ITU Recommendations V.10 and V.28**

**Output Slew Rate Control**

**Output Short-Circuit-Current Limiting**

**Wide Supply Voltage Range**

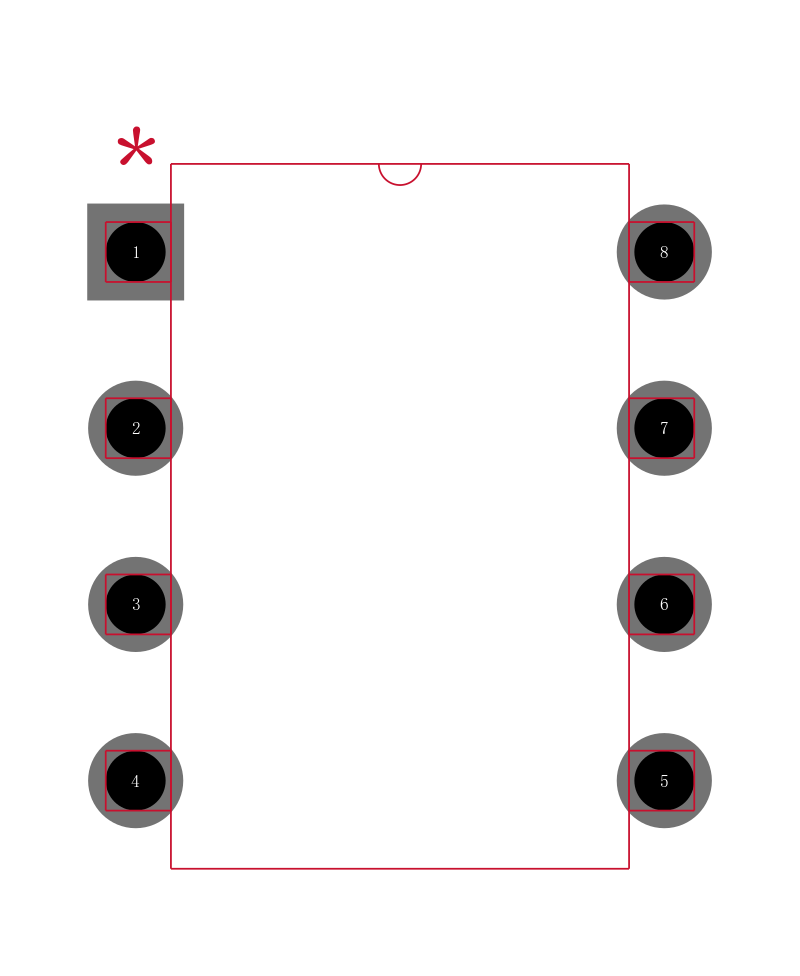

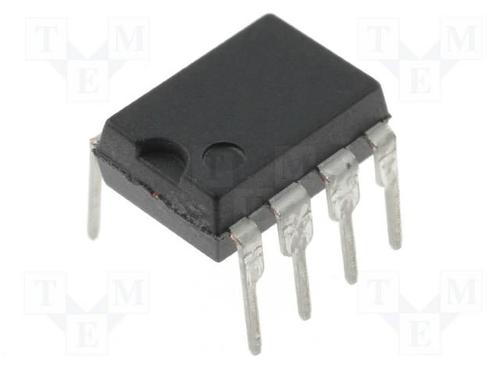

**8-Pin Package**

**Designed to Be Interchangeable With ****National DS9636A**
