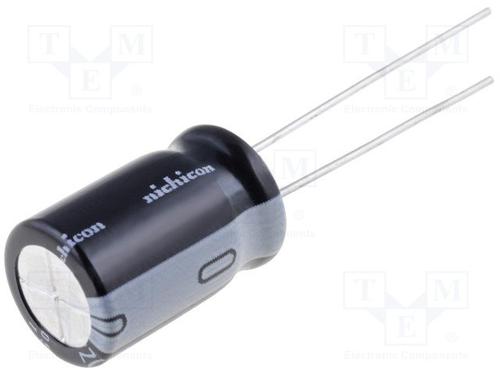

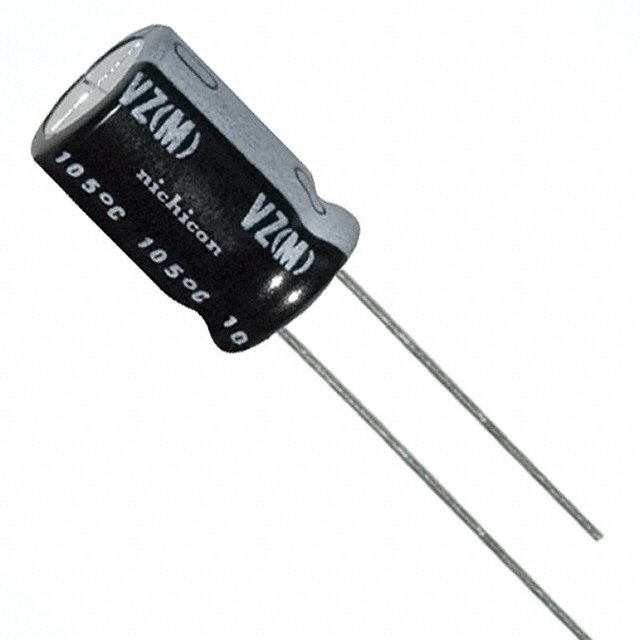

UVZ2E100MPD

10uF ±20% 250V Φ10mm 16mm

**Features:

**

* Small Case Sizes as Same as VR Series, but Operating Over Wide Temperature Range of –55°c to +105°C**

**

* Compliant to the RoHS directive 2002/95/EC**

Specifications:

**

* Temperature Range: –55°C to +105°C**

**

* Rated Voltage Range: 6.3-450 V**

**

* Rated Capacitance Range: 0.1 to 33000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

得捷:
CAP ALUM 10UF 20% 250V RADIAL

立创商城:
10uF ±20% 250V

艾睿:
If you need to filter lower signal frequencies, then this electrolytic UVZ2E100MPD aluminum capacitor, developed by Nichicon, is the tool you need. It can withstand a voltage of 250 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 10uF. Its leakage current is 200@1Min μA. This product is 16 mm tall with a diameter of 10 mm. It has a tolerance of 20%. The UVZ2E100MPD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 5 mm.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 10uF 20% Radial 10X16 LS 5mm

安富利:
Cap Aluminum 10uF 250V 20% 10 X 16mm Radial Aluminum Cylindrical Can 5mm 74mA 1000 hr 105°C Bulk

TME:
Capacitor: electrolytic; THT; 10uF; 250VDC; Ø10x16mm; Pitch:5mm

Newark:
# NICHICON  UVZ2E100MPD  Electrolytic Capacitor, 10 µF, 250 V, VZ Series, ± 20%, Radial Leaded, 10 mm
