UPW2A330MPD1TD

NICHICON  UPW2A330MPD1TD  铝电解电容, 33uF, 100V, 径向引线

PW Series 33 uF 100 V 105°C Ř10 x 12.5mm LS=5mm Radial Aluminum Electrolytic Cap

得捷:
CAP ALUM 33UF 20% 100V RADIAL

立创商城:
33uF ±20% 100V

贸泽:
Aluminum Electrolytic Capacitors - Leaded 33uF 100 Volts 20%

e络盟:
铝电解电容, 33 µF, 100 V, PW Series, ± 20%, 径向引线, 10 mm

艾睿:

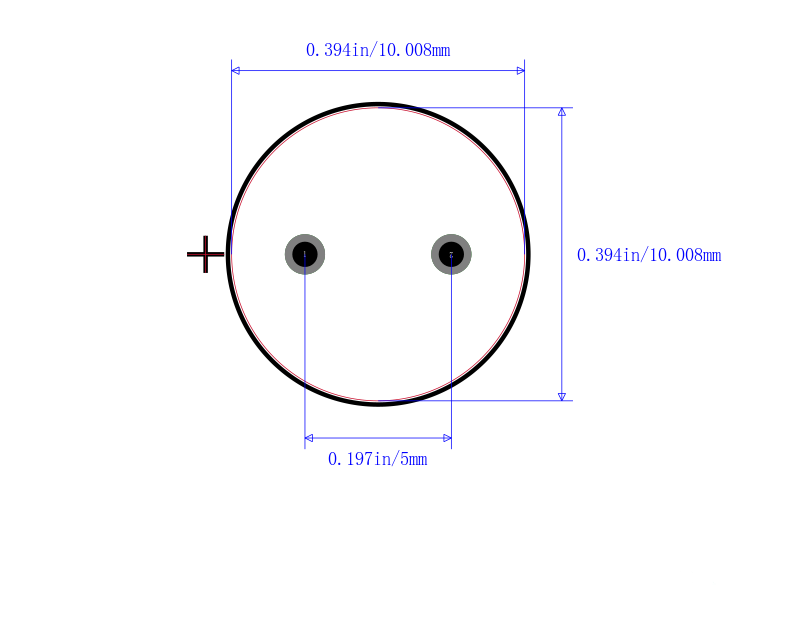

Using the aluminum anode based electrolytic UPW2A330MPD1TD electrolytic capacitor, developed by Nichicon, you can filter out lower signal frequencies. It can withstand a voltage of 100 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 33uF. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. The UPW2A330MPD1TD aluminum electrolytic capacitor has a radial termination style. This product is 12.5 mm tall with a diameter of 10 mm. Its leakage current is 4@1Min μA. It has a tolerance of 20%.

Allied Electronics:
Capacitor

Verical:
Cap Aluminum Lytic 33uF 100V 20% 10 X 12.5mm Radial 5mm 320mA 5000h 105C Automotive Ammo

Newark:
# NICHICON  UPW2A330MPD1TD  Electrolytic Capacitor, Miniature, 33 µF, 100 V, PW Series, ± 20%, Radial Leaded, 10 mm
