绝缘超快整流器模块， 230 Insulated Ultrafast Rectifier Module, 230 A
DESCRIPTION

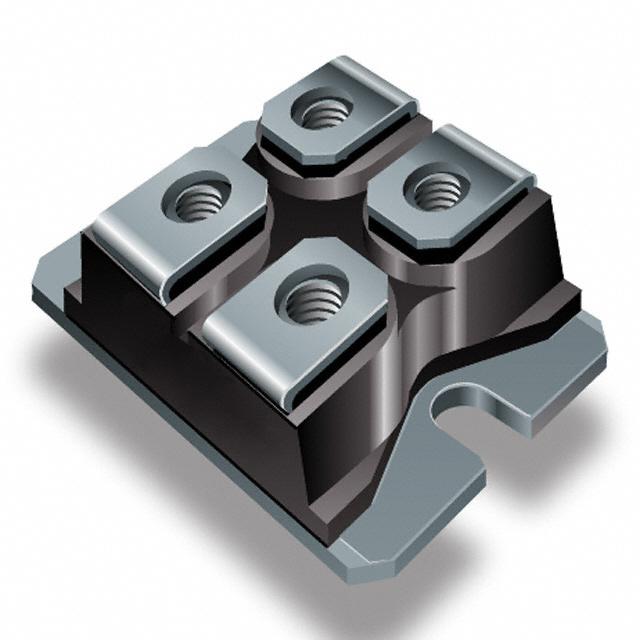

The P insulated modules integrate two state of the art ultrafast recovery rectifiers in the compact, industry standard SOT-227 package. The planar structure of the diodes, and the platinum dopinglife time control, provide a ultrasoft recovery current shape, together with the best overall performance, ruggedness and reliability characteristics.
FEATURES
• Two fully independent diodes
• Ceramic fully insulated packageVISOL= 2500 VAC
• Ultrafast reverse recovery
• Ultrasoft reverse recovery current shape
• Low forward voltage
• Optimized for power conversion: welding and industrial SMPS applications
• Industry standard outline
• Plug-in compatible with other SOT-227 packages
• Easy to assemble
• Direct mounting to heatsink
• UL approved file E78996
• Compliant to RoHS directive 2002/95/EC
• Designed and qualified for industrial level
