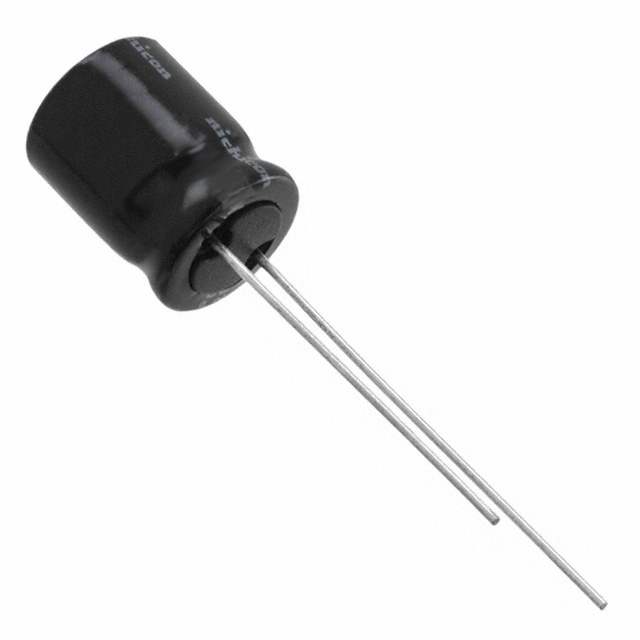

NICHICON UVP1H470MPD1TD 铝电解电容, 47uF, 50V, 径向引线
Are you looking for a capacitor that is low cost, high capacitance and has a high energy density? Then this electrolytic aluminum capacitor from is the one for you! It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This product is 12.5 mm tall with a diameter of 10 mm. The UVP1H470MPD1TD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 70.5@5Min μA. Its capacitance value is 47uF. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. It has a tolerance of 20%.
额定电压DC 50.0 V
电容 47 µF
容差 ±20 %
纹波电流 150 mA
纹波电流高频 150mA @120Hz
纹波电流低频 300mA @10kHz
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 50 V
安装方式 Through Hole
引脚数 2
封装 剪切带

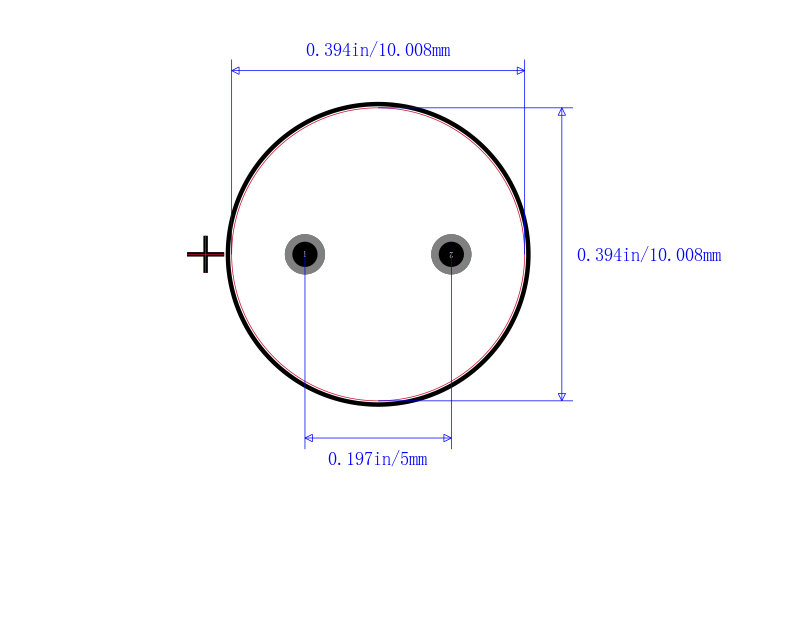

引脚间距 5 mm
高度 12.5 mm
直径 10.0 mm
封装 剪切带
引脚间距 5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
寿命（小时） 10000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UVP1H470MPD1TD Nichicon 尼吉康 | 当前型号 | 当前型号 |
UVP1H470MPA 尼吉康 | 功能相似 | UVP1H470MPD1TD和UVP1H470MPA的区别 |
UVP1H470MPA1CV 尼吉康 | 功能相似 | UVP1H470MPD1TD和UVP1H470MPA1CV的区别 |
