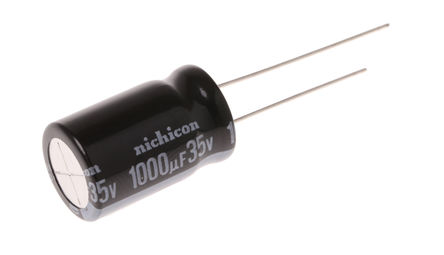

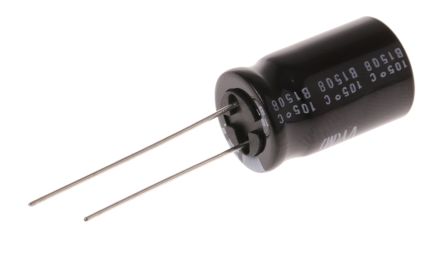

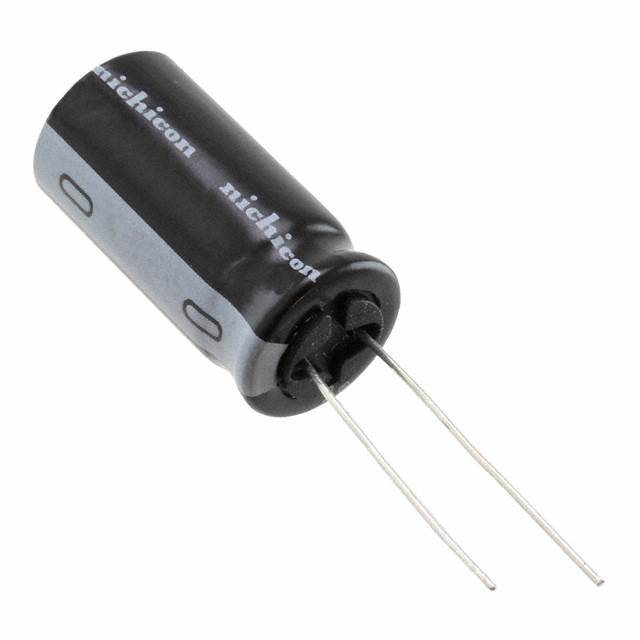

UVY1V102MHD

Nichicon VY 系列Nichicon VY 系列铝电解电容器为微型尺寸的低阻抗高可靠性电容器，用于开关电源。 VY 系列非常可靠，具有长达 1000 小时的额定寿命，铝电解电容器还具有高波纹电流和温度范围。### 径向 105°C

VY 系列通用电解器

Nichicon VY 系列器为微型尺寸的低阻抗高可靠性电容器，用于开关电源。

### 特征与优势：

105°C 时具有 1000 小时的额定寿命

高波纹电流和温度范围

欧时:
### Nichicon VY 系列Nichicon VY 系列铝电解电容器为微型尺寸的低阻抗高可靠性电容器，用于开关电源。 VY 系列非常可靠，具有长达 1000 小时的额定寿命，铝电解电容器还具有高波纹电流和温度范围。### 径向 105°C

立创商城:
1000uF ±20% 35V

得捷:
CAP ALUM 1000UF 20% 35V RADIAL

艾睿:
By using pure aluminum foil in the anode, this electrolytic UVY1V102MHD aluminum capacitor from Nichicon can easily filter low frequencies. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its leakage current is 1050@1Min|350@2Min μA. This product is 20 mm tall with a diameter of 12.5 mm. Its capacitance value is 1000uF. The UVY1V102MHD aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%.

Allied Electronics:
1000uF 35 V Aluminium Electrolytic Capacitor, VY Series 1000h 12.5 Dia. x 20mm

安富利:
Cap Aluminum 1000uF 35V 20% 12.5 X 20mm Radial 5mm 810mA 1000 hr 105°C Bulk

TME:
Capacitor: electrolytic; THT; 1000uF; 35VDC; Ø12.5x20mm; Pitch:5mm

Verical:
Cap Aluminum Lytic 1000uF 35V 20% 12.5 X 20mm Radial 5mm 810mA 1000h 105C Bulk
