Diode Schottky 40V 10A 3Pin2+Tab Power Mite T/R

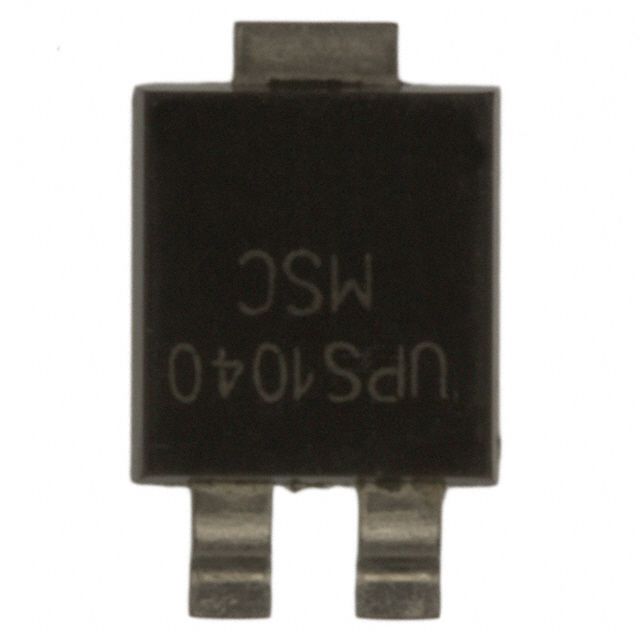

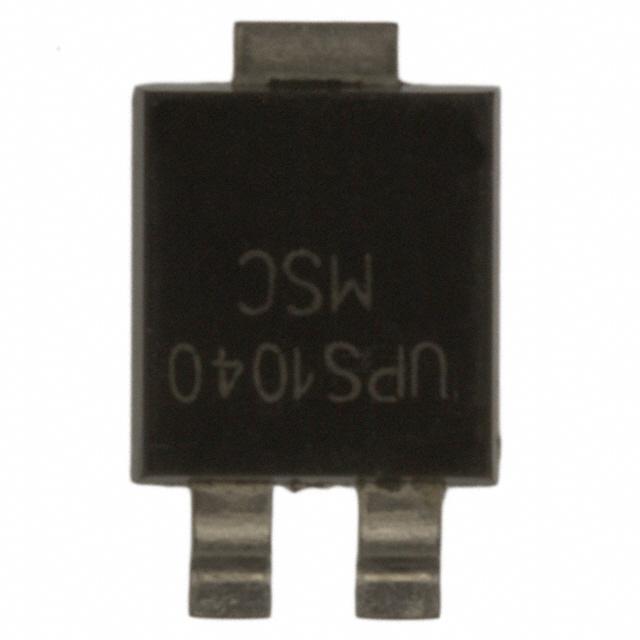

This UPS1040e3 in the Powermite3® package is a high efficiency Schottky rectifier that is also RoHS compliant offering high current/power capabilities previously found only in much larger packages. They are ideal for SMD applications that operate at high frequencies. In addition to its size advantages, the Powermite3® package includes a full metallic bottom that eliminates the possibility of solder flux entrapment during assembly and a unique locking tab act as an efficient heat path to the heat-sink mounting. Its innovative design makes this device ideal for use with automatic insertion equipment.
额定电压DC 40.0 V
额定电流 10.0 A
电容 700 pF
输出电流 ≤10.0 A
正向电压 510mV @10A
极性 Standard
正向电流 10 A
最大正向浪涌电流(Ifsm) 150 A
正向电压Max 510mV @10A
正向电流Max 10 A
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 3
封装 POWERMITE-3
封装 POWERMITE-3
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
