6V,100mA电压稳压器
description/ordering information
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of
applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power-pass elements to make high-current voltage regulators. One of these regulators can deliver up to 100 mA of output current. The internal limiting and thermal-shutdown features of these regulators essentially make them immune to overload. When used as a replacement for a Zener diode-resistor combination, an effective improvement in output impedance can be obtained, together with lower bias current.
3-Terminal Regulators
Output Current Up To 100 mA
No External Components
Internal Thermal-Overload Protection
Internal Short-Circuit Current Limiting
输出接口数 1
输出电压 6.2 V
输出电流 100 mA
静态电流 3.90 mA
输出电容类型 Capacitor Free
跌落电压 1.7V @40mA
调节输出数 1
输入电压Max 20 V
输入电压Min 8.5 V
输出电压Min 6.2 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 ±5 %
输入电压 8.5V ~ 20V
安装方式 Surface Mount
引脚数 4

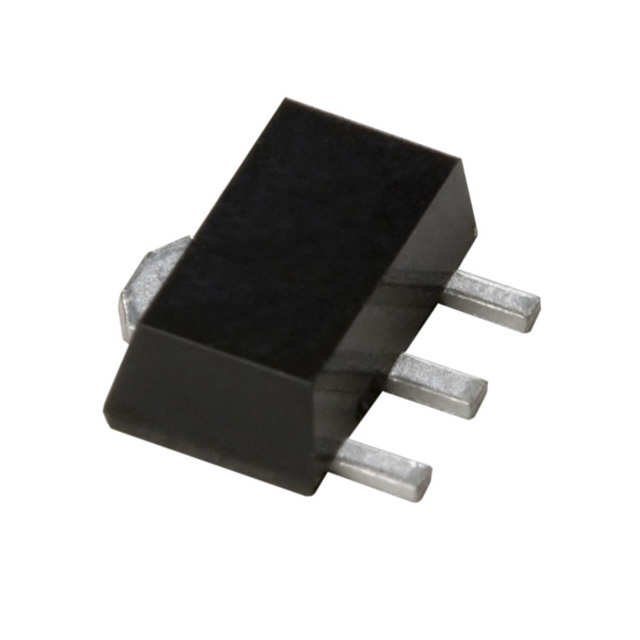

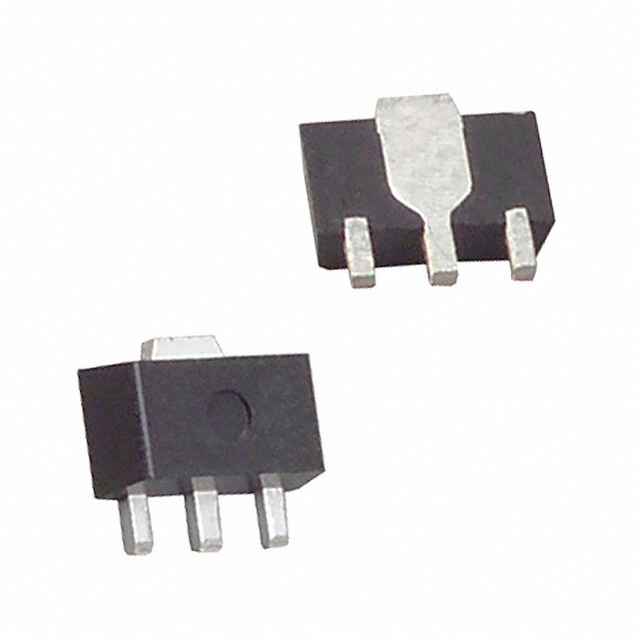

封装 SOT-89-3
封装 SOT-89-3
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UA78L06ACPKG3 TI 德州仪器 | 当前型号 | 当前型号 |
UA78L06ACPK 德州仪器 | 完全替代 | UA78L06ACPKG3和UA78L06ACPK的区别 |
L78L06ACUTR 意法半导体 | 功能相似 | UA78L06ACPKG3和L78L06ACUTR的区别 |
L78L06ABUTR 意法半导体 | 功能相似 | UA78L06ACPKG3和L78L06ABUTR的区别 |
