UPM1C152MHD

1.5mF ±20% 16V 1700mA100kHz1700mA Φ12.5mm

1500µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C

立创商城:
1500uF ±20% 16V

得捷:
CAP ALUM 1500UF 20% 16V RADIAL

贸泽:
Aluminum Electrolytic Capacitors - Leaded 16volts 1500uF 12.5x25 20% 5LS

艾睿:

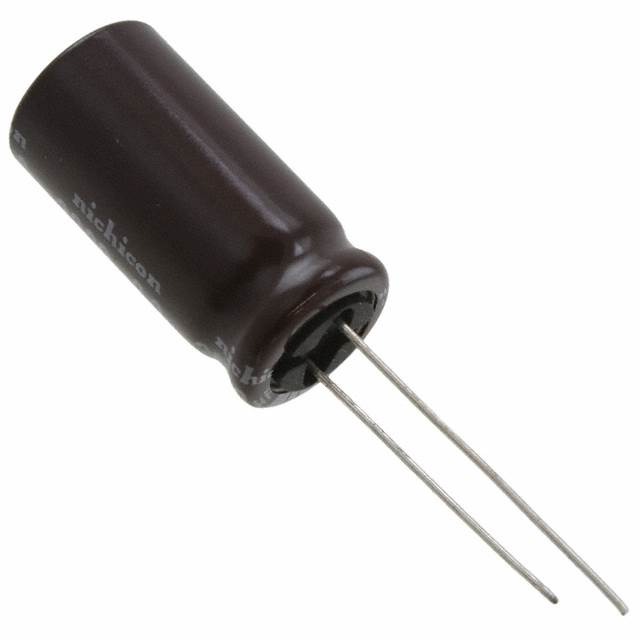

Do you need something that can let through high frequencies and filter out low frequencies? The electrolytic UPM1C152MHD electrolytic capacitor from Nichicon is for you. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its capacitance value is 1500uF. The UPM1C152MHD aluminum electrolytic capacitor has a radial termination style. This product is 25 mm tall with a diameter of 12.5 mm. Its leakage current is 720@1Min μA. It has a tolerance of 20%.

安富利:
Cap Aluminum 1500uF 16V 20% 12.5 X 25mm Radial 5mm 1490mA 5000 hr 105°C Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 1500uF; 16VDC; ±20%

Verical:
Cap Aluminum Lytic 1500uF 16V 20% 12.5 X 25mm Radial 5mm 1490mA 5000h 105C Bulk

Newark:
# NICHICON  UPM1C152MHD  Electrolytic Capacitor, 1500 µF, 16 V, PM Series, ± 20%, Radial Leaded, 12.5 mm

Win Source:
CAP ALUM 1500UF 20% 16V RADIAL / 1500 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
