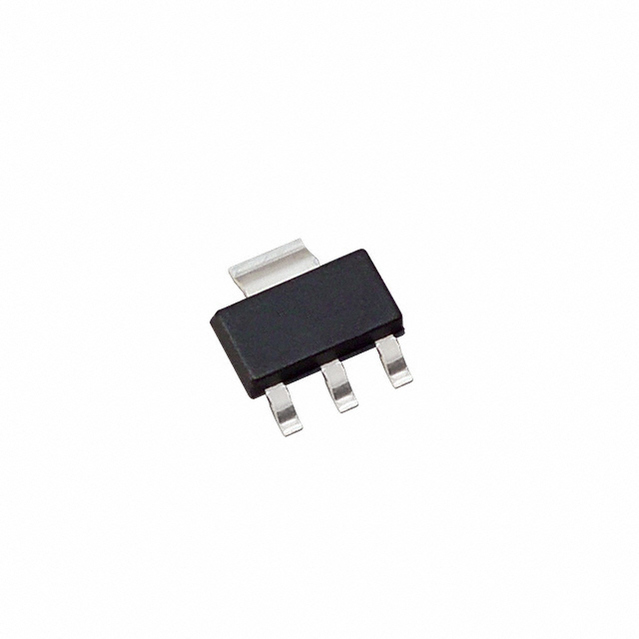

UA78M05CDCYR

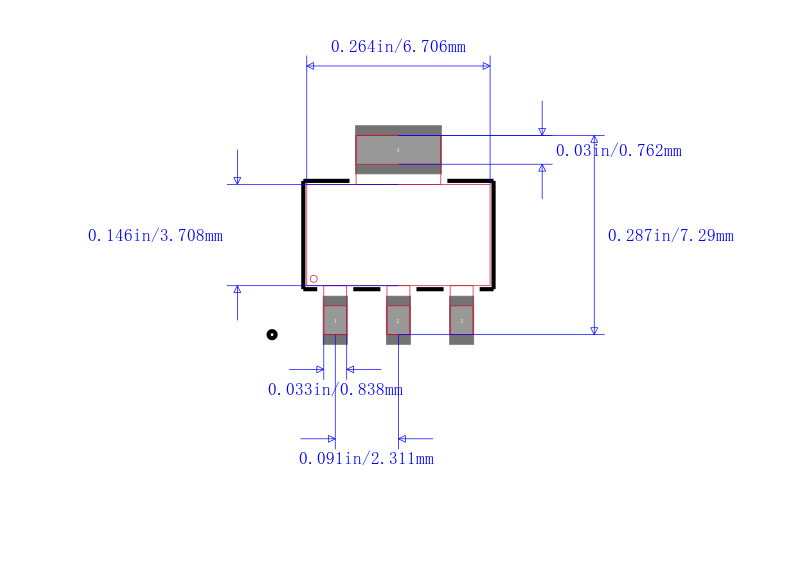

TEXAS INSTRUMENTS  UA78M05CDCYR  线性稳压器, 固定, 7805, 7V至25V输入, 5V和0.5A输出, SOT-223-4

The is a fixed Voltage Regulator designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. This regulator can delivers up to 500mA of output current. The internal current-limiting and thermal-shutdown features of this regulator essentially make it immune to overload. In addition to use as fixed-voltage regulator, this device can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulator.

.

No external components

.

Internal thermal-overload protection

.

High power-dissipation capability

.

Internal short-circuit current limiting

.

Output transistor safe-area compensation

.

Green product and no Sb/Br
