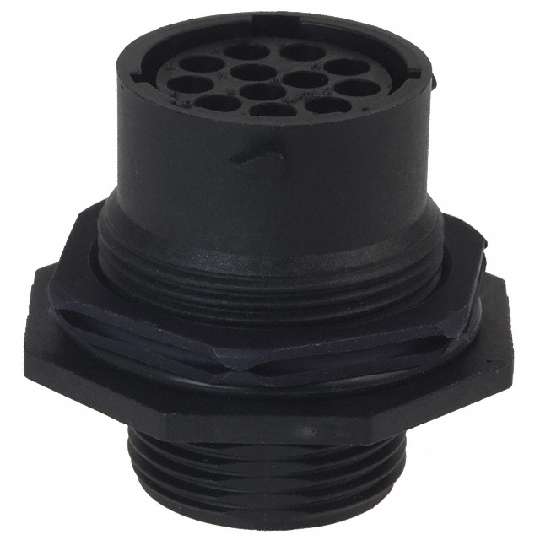

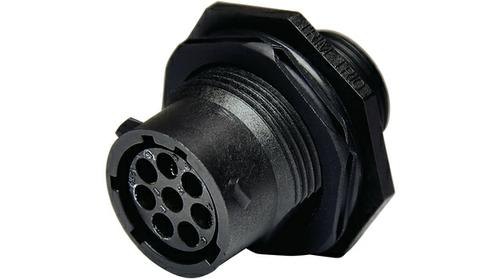

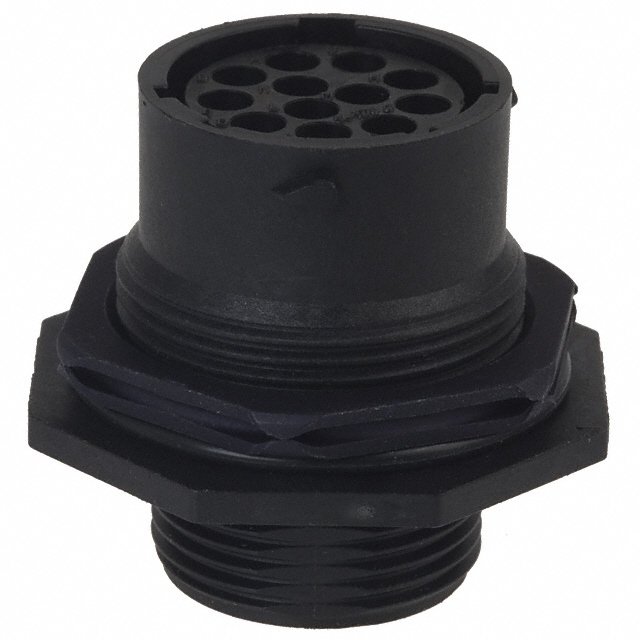

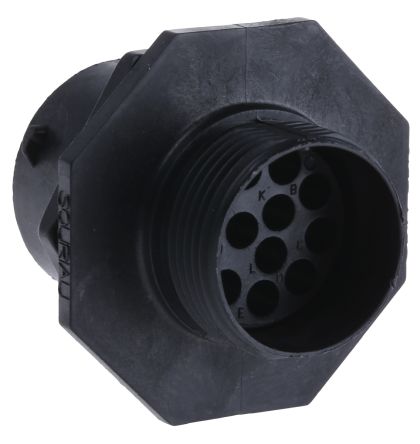

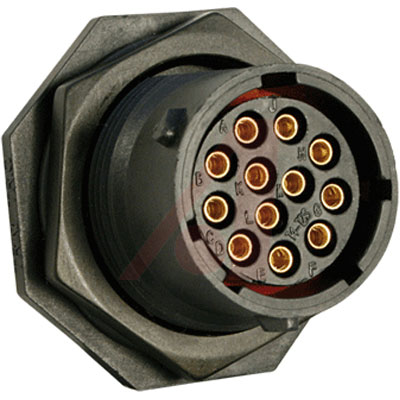

SOURIAU UTS71412S 圆形连接器外壳, Trim Trio UTS系列, 插座, 12 路, 母, 面板安装, 14-12
UTS 锁紧螺母插座和附件
电线型号,用于引脚和插座触点
### 注
3、4、7、8 和 12 路使用功能尺寸 16 触点
6、10 和 19 路使用尺寸 20 触点
_必须单独订购压接触点_
### UTS
欧时:
12路 面板安装 直向 MIL 规格圆形连接器 插座, 插座触点
贸泽:
标准环形连接器 12P Sckt Receptacle Jam Nut Size 14
e络盟:
圆形连接器, Trim Trio UTS系列, 锁紧螺母插座, 12 触点, 压接插座-无触芯, 卡口, 热塑性主体
艾睿:
A great way you can ensure a solid connection between your cylindrical cable housing is by using this cpc UTS71412S connector from Souriau. It has a receptacle type gender. It has a straight body orientation. Its shell size is 14-12. This socket type connector has 12 socket type contacts. This device has a maximum current rating of 13 A. This circular connector has an operating temperature of -40 to 105 °C. It uses the crimp termination method. This product is 33.9 mm long, 34.9 mm tall and 34.9 mm deep.
Allied Electronics:
connector; plastic circ; size 14; jam nut recept; for 12 size 16 socket cont; sealed
Chip1Stop:
Conn CPC SKT 12 POS Crimp ST Jam Nut 12 Terminal 1 Port
Verical:
Conn Circular SKT 12 POS Crimp ST Jam Nut 12 Terminal 1 Port
Newark:
# SOURIAU UTS71412S Circular Connector Housing, Trim Trio UTS Series, Receptacle, 12, Socket, Panel Mount, 14-12
触点数 12
极性 Female
触点电镀 Gold
额定电流 13 A
绝缘电阻 5000 MΩ
易燃性等级 UL 94 V-0
针脚数 12
拔插次数 250
额定电流Max 13 A
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 125 VAC
额定电压 125 VAC
安装方式 Panel
高度 34.9 mm
外壳颜色 Black
颜色 Black
材质 Thermoplastic
工作温度 -40℃ ~ 105℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
