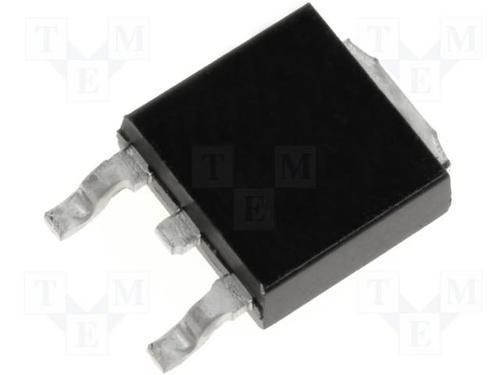

UA79M08CKVURG3

TEXAS INSTRUMENTS  UA79M08CKVURG3  线性稳压器, 固定, 7908, -25V至-10.5V输入, -8V和0.5A输出, TO-252-3

The is a single channel, fixed output, low dropout LDO negative voltage regulator in 3 pin TO-252 package. This device is designed to complement µA78M00 series in a wide range of applications. The applications include on-card regulation for elimination of noise and distribution problems associated with single point regulation. The internal current limiting and thermal shutdown of essentially make this device immune to overload. In addition to use as fixed voltage regulator, the regulator can be also used with external components to obtain adjustable output voltages and currents. It can also be used as power pass element in precision regulators.

.

Fixed output voltage of -8V

.

Output current up to 500mA

.

Input voltage range from -25V to -10.5V

.

Dropout voltage of 1.1V at 5mA output current

.

No external components required

.

High power dissipation capability

.

Output transistor safe area compensation

.

Operating temperature range from 0°C to 125°C
