UA7810CKTTR

TEXAS INSTRUMENTS  UA7810CKTTR  线性稳压器, 固定, 7810, 12.5V至28V输入, 10V和1.5A输出, TO-263-3

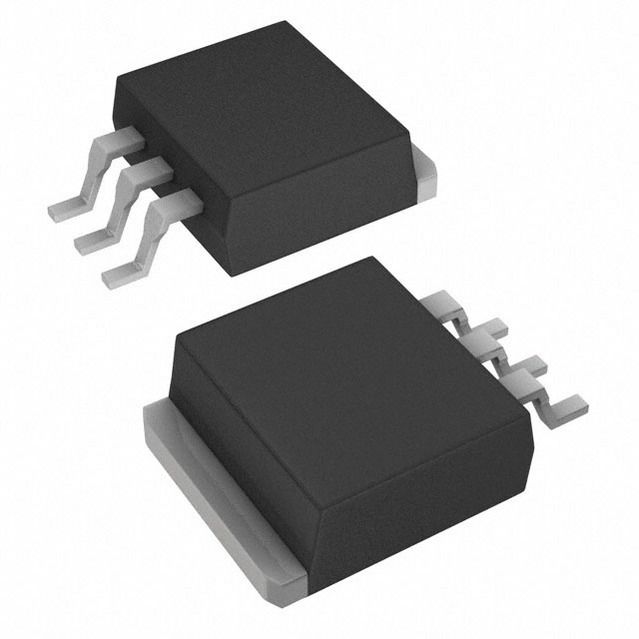

The is a single channel, fixed output three terminal positive linear voltage regulator in 3 pin TO-263 DDPAK package. This device is designed for a wide range of applications including on-card regulation for elimination of noise and distribution problems associated with single point regulation. The internal current limiting and thermal shutdown essentially make this regulator immune to overload. In addition to use as fixed voltage regulator, the device can also be used with external components to obtain adjustable output voltages and currents. It can also be used as power pass element in precision regulators.

.

Fixed output voltage of 10V

.

Output current up to 1.5A

.

Input voltage range from 12.5V to 28V

.

Dropout voltage of 2V at 1A output current

.

High power dissipation capability

.

Output transistor safe area compensation

.

Output capacitor is not required for stability

.

Operating temperature range from 0°C to 125°C

This device has limited built-in ESD protection. The leads should be shorted or device should be placed in conductive foam during storage or handling to prevent electrostatic damage to MOS gates.
