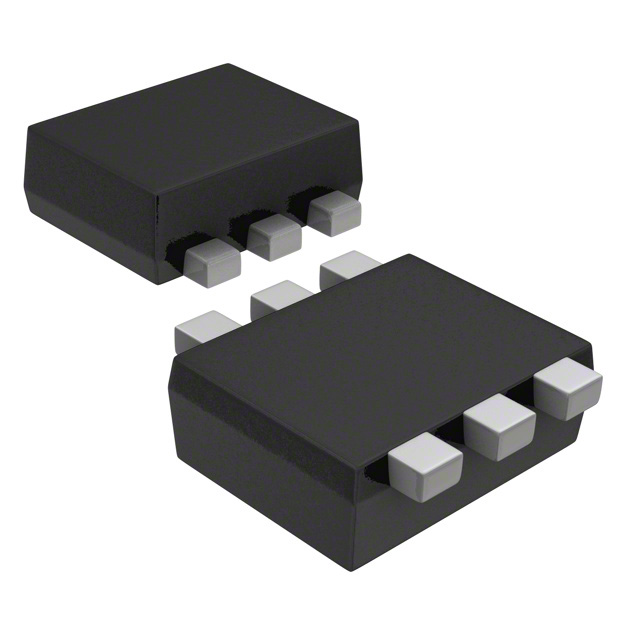

SOT-666 5V 100W
Diode TVS Hex Bi-Dir 5V 100W 6-Pin SOT-666 T/R
得捷:
TVS DIODE 5VWM 12VC SC89-6
艾睿:
Implement surge protection with this UCLAMP0506A.TCT TVS diode from Semtech. Its peak pulse power dissipation is 100 W. Its maximum leakage current is 1 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 12 V and minimum breakdown voltage is 6 V. This TVS diode has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.
安富利:
μClamp 5-Line ESD protection Array
Verical:
ESD Suppressor Diode TVS Bi-Dir 5V 6-Pin SOT-666 T/R
Newark:
# SEMTECH UCLAMP0506A.TCT TVS Diode, µClamp Series, Bidirectional, 5 V, 9 V, SC-89, 6 Pins
Online Components:
Diode TVS Hex Bi-Dir 5V 100W 6-Pin SOT-666 T/R
Win Source:
TVS DIODE 5VWM 12VC SC89
额定电压DC 5.00 V
额定功率 100 W
击穿电压 9.00 V
钳位电压 12 V
最大反向电压（Vrrm） 5V
测试电流 1 mA
最大反向击穿电压 9 V
脉冲峰值功率 100 W
最小反向击穿电压 6 V
击穿电压 6 V
工作温度Max 125 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 125℃
安装方式 Surface Mount
引脚数 6
封装 SC-89-6
长度 1.60 mm
宽度 1.60 mm
高度 0.6 mm
封装 SC-89-6
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UCLAMP0506A.TCT Semtech Corporation | 当前型号 | 当前型号 |
UCLAMP0505A.TCT Semtech Corporation | 类似代替 | UCLAMP0506A.TCT和UCLAMP0505A.TCT的区别 |
UCLAMP0504A.TCT Semtech Corporation | 类似代替 | UCLAMP0506A.TCT和UCLAMP0504A.TCT的区别 |
UCLAMP3306P.TCT Semtech Corporation | 功能相似 | UCLAMP0506A.TCT和UCLAMP3306P.TCT的区别 |
