UHE1H471MHD3

HE 系列 470 uF 50 V 20 % 通孔 径向 铝电解电容

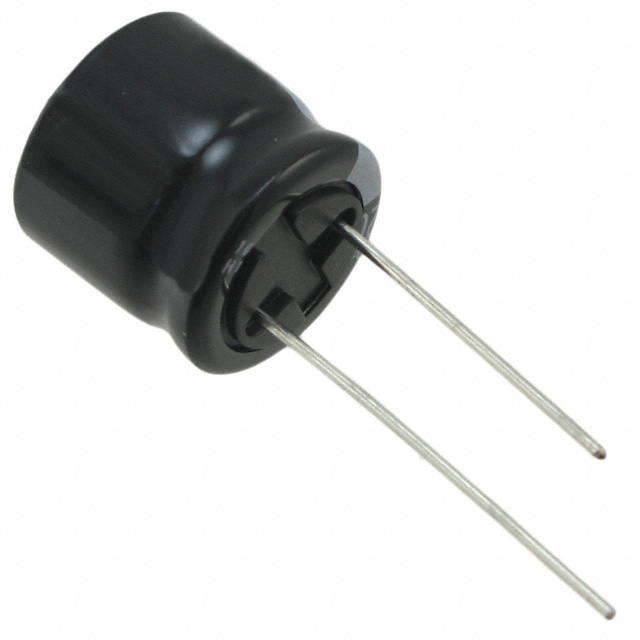

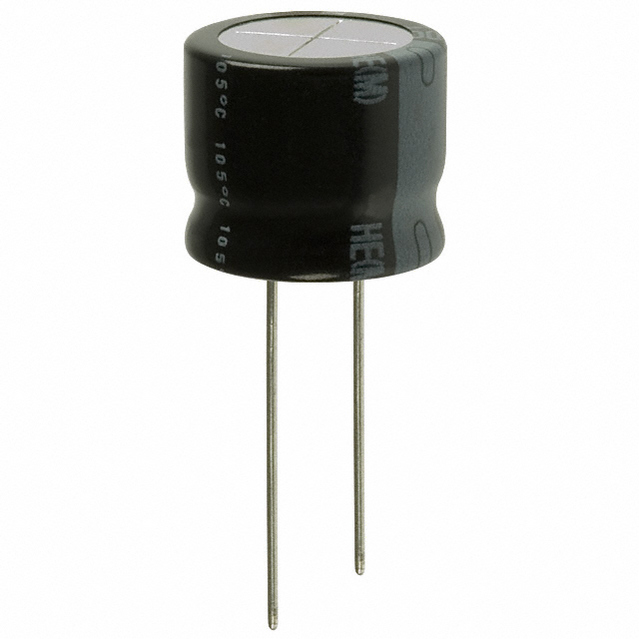

470µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C

得捷:
CAP ALUM 470UF 20% 50V RADIAL

立创商城:
470uF ±20% 50V

艾睿:
By implementing this electrolytic UHE1H471MHD3 aluminum capacitor from Nichicon in your electronic circuit design you will lower costs in the long run. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 470uF. Its leakage current is 235@2Min μA. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. The UHE1H471MHD3 aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. This product is 15 mm tall with a diameter of 16 mm.

安富利:
Cap Aluminum 470uF 50V 20% 16 X 15mm Radial 7.5mm 1690mA 10000 hr 105°C Bulk

Verical:
Cap Aluminum Lytic 470uF 50V 20% 16 X 15mm Radial 7.5mm 1690mA 10000h 105C Bulk

Newark:
# NICHICON  UHE1H471MHD3  Electrolytic Capacitor, Miniature, 470 µF, 50 V, HE Series, ± 20%, Radial Leaded, 16 mm
