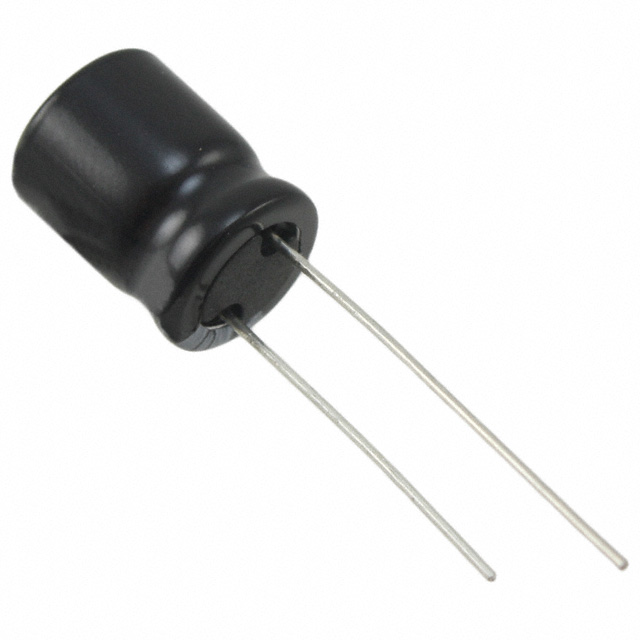

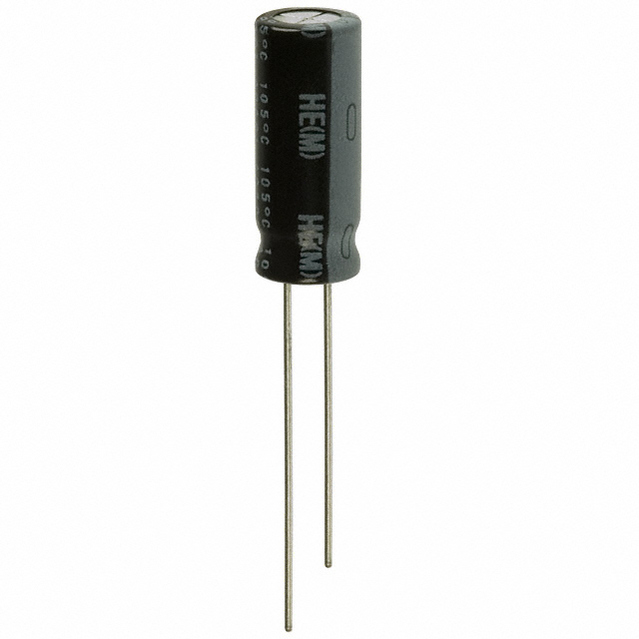

NICHICON UHE1H471MPD 铝电解电容 470uF, 50V, 径向引线
Since the anode is made out of pure aluminum, you"ll be able to filter lower frequencies with ease using "s electrolytic aluminum capacitor. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UHE1H471MPD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 235@2Min μA. It has a tolerance of 20%. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its capacitance value is 470uF. This product is 31.5 mm tall with a diameter of 10 mm.
额定电压DC 50.0 V
电容 470 µF
等效串联电阻ESR 0.17 Ω
容差 ±20 %
产品系列 UHE
纹波电流 1690 mA
纹波电流高频 1.268A @120Hz
纹波电流低频 1.69A @100kHz
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 50 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 5 mm
长度 31.5 mm
高度 31.5 mm
直径 10.0 mm
封装 Radial, CAN
引脚间距 5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 1000
寿命（小时） 7000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UHE1H471MPD Nichicon 尼吉康 | 当前型号 | 当前型号 |
UHE1H471MPT 尼吉康 | 类似代替 | UHE1H471MPD和UHE1H471MPT的区别 |
EEU-FC1H471L 松下 | 功能相似 | UHE1H471MPD和EEU-FC1H471L的区别 |
EEU-FC1H471 松下 | 功能相似 | UHE1H471MPD和EEU-FC1H471的区别 |
