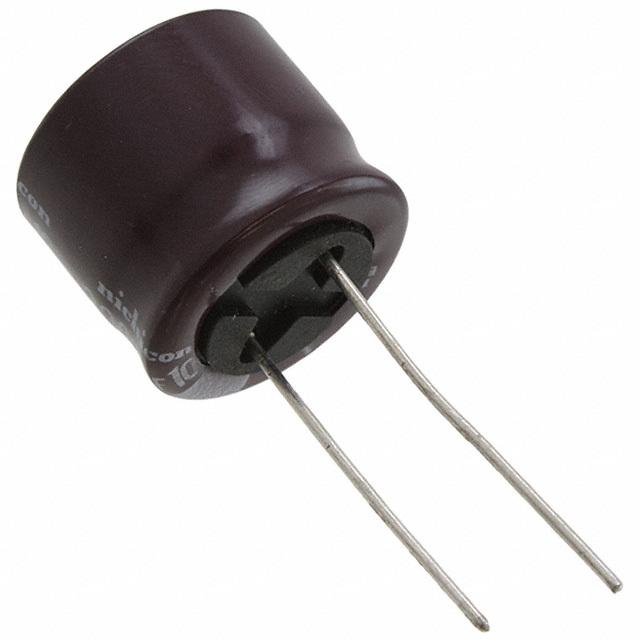

UPJ2A151MHD6

PJ 系列 150 uF 100 V ±20 % 通孔 径向 铝电解电容

铝电解器 径向，Can - 105°C 时为 5000 小时

立创商城:
150uF ±20% 100V

得捷:
CAP ALUM 150UF 20% 100V RADIAL

艾睿:
Use this relatively high equivalent series resistance electrolytic UPJ2A151MHD6 aluminum capacitor from Nichicon to generate high heat for a given current level. It can withstand a voltage of 100 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. This product is 15 mm tall with a diameter of 18 mm. The UPJ2A151MHD6 aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. Its capacitance value is 150uF. Its leakage current is 450@1Min μA.

安富利:
Cap Aluminum 150uF 100V 20% 18 X 15mm Radial 7.5mm 635mA 5000 hr 105°C Bulk

Verical:
Cap Aluminum Lytic 150uF 100V 20% 18 X 15mm Radial 7.5mm 635mA 5000h 105C Bulk
