TEXAS INSTRUMENTS UCC28701DBVT 控制器, 反激, 恒压, 恒流, 36V-9V电源, 130 kHz, SOT-23-6
Description
The UCC28700 family of flyback power supply controllers provides Constant-Voltage CV and Constant-Current CC output regulation without the use of an optical coupler. The devices process information from the primary power switch and an auxiliary flyback winding for precise control of output voltage and current. Low start-up current, dynamically controlled operating states and a tailored modulation profile support very low standby power without sacrificing start-up time or output transient response.
Features
• < 30-mW No-Load Power for 5-Star Rating
• Primary-Side Regulation PSR Eliminates OptoCoupler
• ±5% Voltage and Current Regulation
• 130-kHz Maximum Switching Frequency Enables High-Power Density Charger Designs
• Quasi-Resonant Valley-Switching Operation for Highest Overall Efficiency
• Patent-Pending Frequency-Jitter Scheme to Ease EMI Compliance
• Wide VDD Range Allows Small Bias Capacitor
• Clamped Gate-Drive Output for MOSFET
• Protection Functions: Overvoltage, Low-Line, and Overcurrent
• Programmable Cable Compensation UCC28700 Only
• NTC Resistor Interface UCC28701, UCC28702 and UCC28703 Only With Fixed Cable Compensation Options
• SOT-23 Package
频率 130 kHz
电源电压DC 9.00V min
输出接口数 1
输入电压DC 35.0 V
输出电流 0.025 A
供电电流 2.65 mA
针脚数 6
调节输出数 1
开关频率 1kHz ~ 130kHz
占空比 99 %
最大占空比 99 %
工作温度Max 125 ℃
工作温度Min -20 ℃
电源电压 9V ~ 35V
电源电压Max 36 V
电源电压Min 9 V
输入电压 35 V
安装方式 Surface Mount
引脚数 6

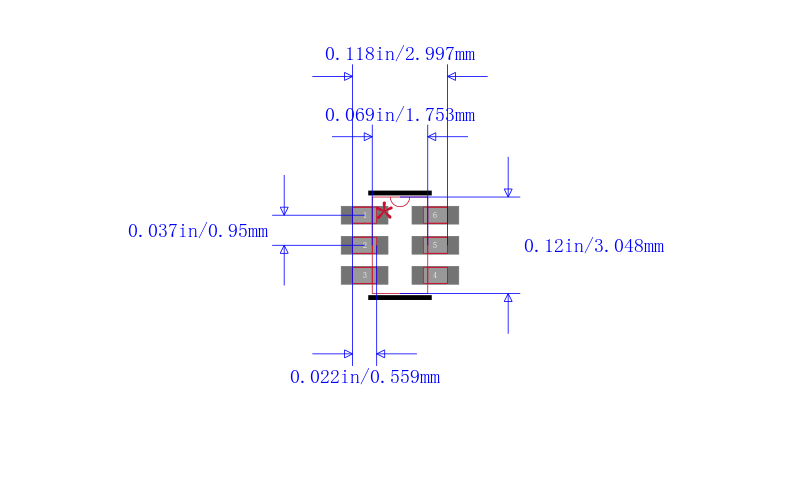

封装 SOT-23-6
封装 SOT-23-6
工作温度 -20℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UCC28701DBVT TI 德州仪器 | 当前型号 | 当前型号 |
UCC28701DBVR 德州仪器 | 完全替代 | UCC28701DBVT和UCC28701DBVR的区别 |
