TEXAS INSTRUMENTS UCC28610P 芯片, 电源控制器, AC/DC, 反激式, 8PDIP
The AC to DC converter from Texas Instruments allows you to go from AC to DC voltage in your application. This AC to DC power converter supports flyback topology. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This AC to DC power converter has an operating temperature range of -40 °C to 125 °C.
频率 130 kHz
电源电压DC 9.00V min
额定功率 65 W
输出接口数 1
输入电压DC 20.0 V
输出电压 12 V
输出电流 1.5 A
供电电流 3 mA
针脚数 8
输入电流 10.0 mA
耗散功率 909 mW
跌落电压 2.00 V
调节输出数 1
输出功率 909 mW
开关频率 30kHz ~ 133kHz
拓扑结构 Flyback
最大占空比 2 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 20 V
电源电压Min 9 V
输入电压 9V ~ 20V
安装方式 Through Hole
引脚数 8

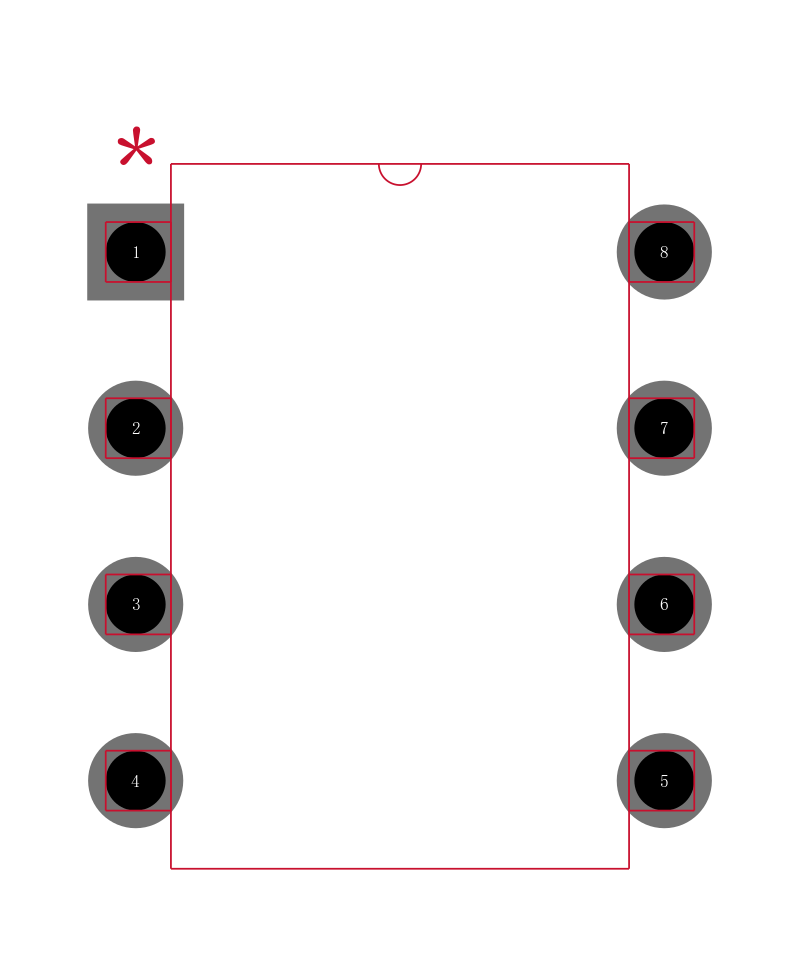

封装 DIP-8
封装 DIP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
