负稳压器 NEGATIVE-VOLTAGE REGULATORS
description
This series of fixed-negative-voltage integrated-circuit voltage regulators is designed to complement Series µA7800 in a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation.
3-Terminal Regulators
Output Current Up To 1.5 A
No External Components
Internal Thermal Overload Protection
High-Power Dissipation Capability
Internal Short-Circuit Current Limiting
Output Transistor Safe-Area Compensation
输出接口数 1
输入电压DC -25.0 V max
输出电压 -8.00 V max, -7.60 V min
输出电流 1.5 A
通道数 1
静态电流 1.50 mA
输出电容类型 Capacitor Free
跌落电压 1.1V @1A
调节输出数 1
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min 0 ℃
安装方式 Through Hole
引脚数 3

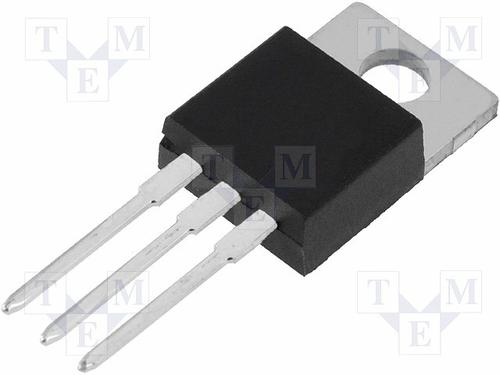

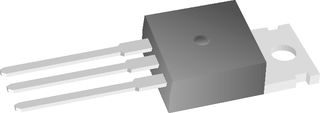

封装 TO-220-3
封装 TO-220-3
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UA7908CKCS TI 德州仪器 | 当前型号 | 当前型号 |
UA7908CKCSE3 德州仪器 | 完全替代 | UA7908CKCS和UA7908CKCSE3的区别 |
MC79M08BTG 安森美 | 功能相似 | UA7908CKCS和MC79M08BTG的区别 |
MC79M08CTG 安森美 | 功能相似 | UA7908CKCS和MC79M08CTG的区别 |
