双4 -A高速低侧MOSFET驱动器与启用 Dual 4-A High Speed Low-Side MOSFET Drivers With Enable

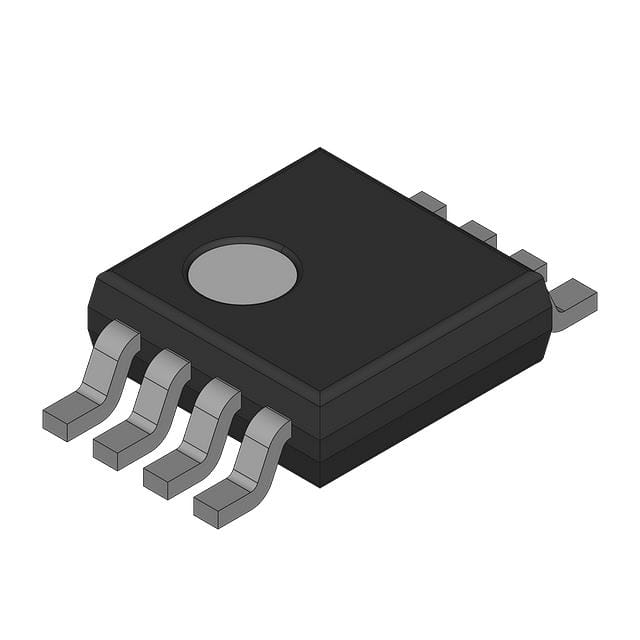

Low-Side Gate Driver IC Inverting, Non-Inverting 8-MSOP-PowerPad
得捷:
IC GATE DRVR LOW-SIDE 8MSOP
立创商城:
UCC27425DGNR
德州仪器TI:
4-A/4-A dual-channel gate driver with enable and inverting/non-inverting inputs
贸泽:
门驱动器 Dual 4-A with Enable
艾睿:
Think of Texas Instruments&s; UCC27425DGNR power driver the next time you are in need of a tool that can power your gates on and off. This device has a maximum propagation delay time of 150 ns and a maximum power dissipation of 3000 mW. Its maximum power dissipation is 3000 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This gate driver has a minimum operating temperature of -40 °C and a maximum of 105 °C. This device has a minimum operating supply voltage of 4 V and a maximum of 15 V.
安富利:
MOSFET DRVR 4A 2-OUT Lo Side Inv/Non-Inv 8-Pin HTSSOP EP T/R
Chip1Stop:
Driver 4A 2-OUT Lo Side Inv/Non-Inv 8-Pin HVSSOP EP T/R
Verical:
Driver 4A 2-OUT Low Side Inv/Non-Inv 8-Pin HVSSOP EP T/R
Win Source:
Dual 4-A High Speed Low-Side MOSFET Drivers With Enable
电源电压DC 4.00V min
上升/下降时间 20ns, 15ns
输出接口数 2
输出电流 4 A
耗散功率 3 W
上升时间 40 ns
下降时间 40 ns
下降时间Max 40 ns
上升时间Max 40 ns
工作温度Max 105 ℃
工作温度Min -40 ℃
耗散功率Max 3000 mW
电源电压 4V ~ 15V
安装方式 Surface Mount
引脚数 8
封装 PowerPad-MSOP-8
封装 PowerPad-MSOP-8
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UCC27425DGNR TI 德州仪器 | 当前型号 | 当前型号 |
UCC27425DGN 德州仪器 | 完全替代 | UCC27425DGNR和UCC27425DGN的区别 |
UCC27425DGNG4 德州仪器 | 功能相似 | UCC27425DGNR和UCC27425DGNG4的区别 |
UCC27425DGNRG4 德州仪器 | 功能相似 | UCC27425DGNR和UCC27425DGNRG4的区别 |
