270uF ±20% 100V 1140mA100kHz1140mA Φ12.5mm
270 µF 100 V 铝电解器 径向,Can - 105°C 时为 10000 小时
立创商城:
270uF ±20% 100V
得捷:
CAP ALUM 270UF 20% 100V RADIAL
艾睿:

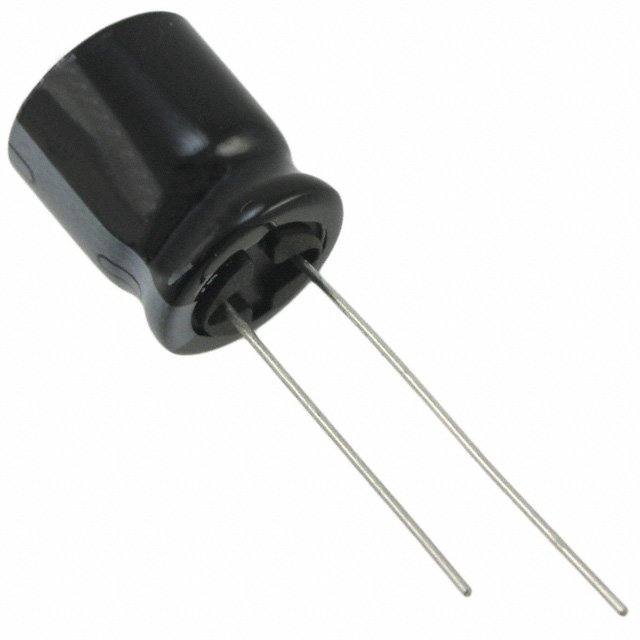

Manufactured from Nichicon, this electrolytic UHE2A271MHD aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 100 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. The UHE2A271MHD aluminum electrolytic capacitor has a radial termination style. This product is 35.5 mm tall with a diameter of 12.5 mm. Its capacitance value is 270uF. Its leakage current is 270@2Min μA. This part has a lead diameter of 0.8 mm and a pitch of 5 mm.
安富利:
Cap Aluminum 270uF 100V 20% 12.5 X 35.5mm Radial Aluminum Cylindrical Can 5mm 1140mA 10000 hr 105°C Bulk
Verical:
Cap Aluminum Lytic 270uF 100V 20% 12.5 X 35.5mm Radial 5mm 1140mA 10000h 105C Bulk
额定电压DC 100 V
电容 270 µF
等效串联电阻ESR 350 mΩ
容差 ±20 %
产品系列 UHE
纹波电流 1140 mA
纹波电流高频 798mA @120Hz
纹波电流低频 1.14A @100kHz
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 2

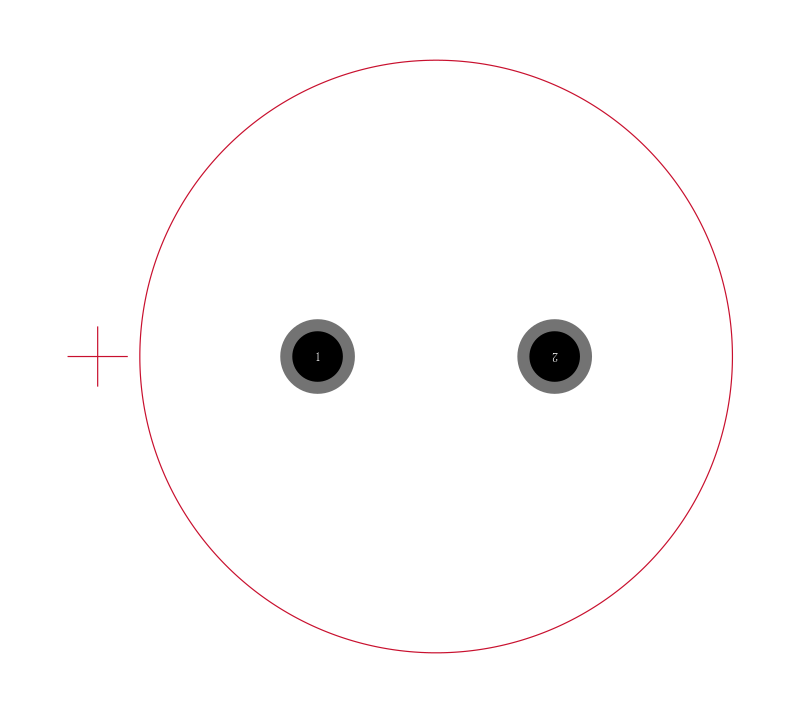

封装 Radial, CAN
引脚间距 5 mm
长度 35.5 mm
高度 35.5 mm

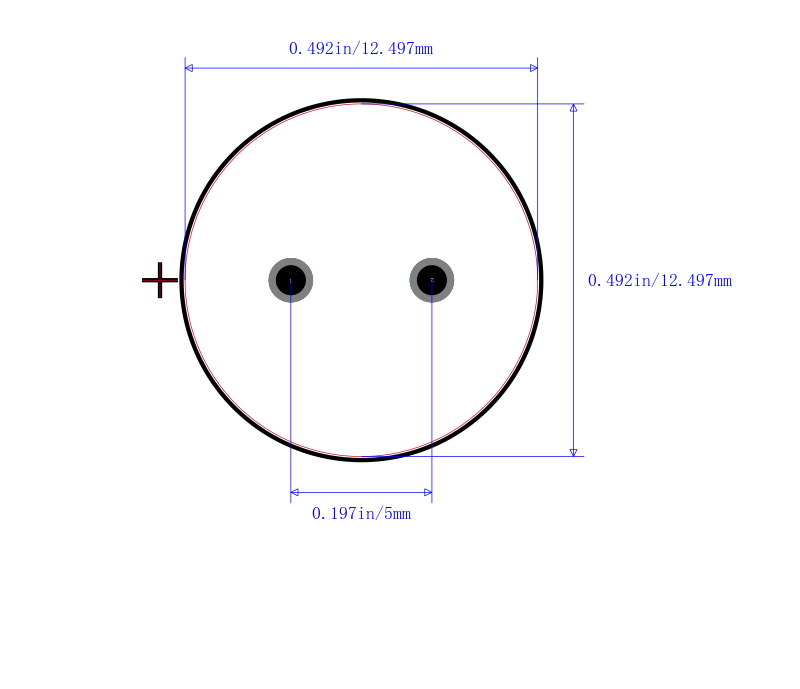

直径 12.5 mm
封装 Radial, CAN
引脚间距 5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 500
寿命(小时) 10000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UHE2A271MHD Nichicon 尼吉康 | 当前型号 | 当前型号 |
UHE2A271MHT 尼吉康 | 类似代替 | UHE2A271MHD和UHE2A271MHT的区别 |
