低功耗经济型BiCMOS电流模式PWM Low Power Economy BiCMOS Current Mode PWM
Efficiently control the voltages across your project by using Texas Instruments" current controller. This current mode controller supports boost|flyback|forward topology. Its single PWM output produces a current of 1000 mA. You can operate this at a switching frequency of 1000 kHz. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This current mode controller has a minimum operating temperature of -40 °C and a maximum of 85 °C. This current mode controller"s maximum duty cycle is 100 %. This device has a maximum of 12 V.
频率 1.00 MHz
电源电压DC 0.00Vmin, 10.0Vmax
输出接口数 1
输出电压 1.00 V
输出电流 1 A
供电电流 1.2 mA
耗散功率 0.65 W
调节输出数 1
上升时间 41 ns
开关频率 1000 kHz
拓扑结构 Boost, Flyback, Forward
占空比 100 %
最大占空比 100 %
下降时间 44 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 650 mW
电源电压 3.6V ~ 10V
安装方式 Surface Mount

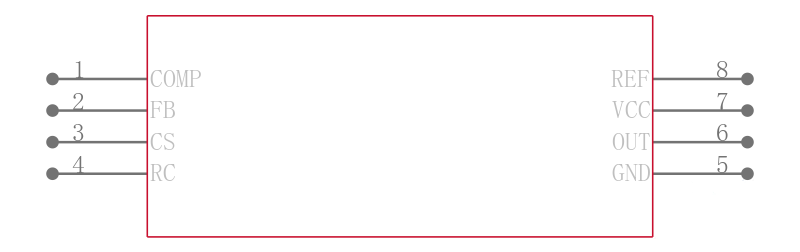

引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UCC2813DTR-3 TI 德州仪器 | 当前型号 | 当前型号 |
UCC2813DTR-2 德州仪器 | 完全替代 | UCC2813DTR-3和UCC2813DTR-2的区别 |
UCC2813DTR-4 德州仪器 | 完全替代 | UCC2813DTR-3和UCC2813DTR-4的区别 |
