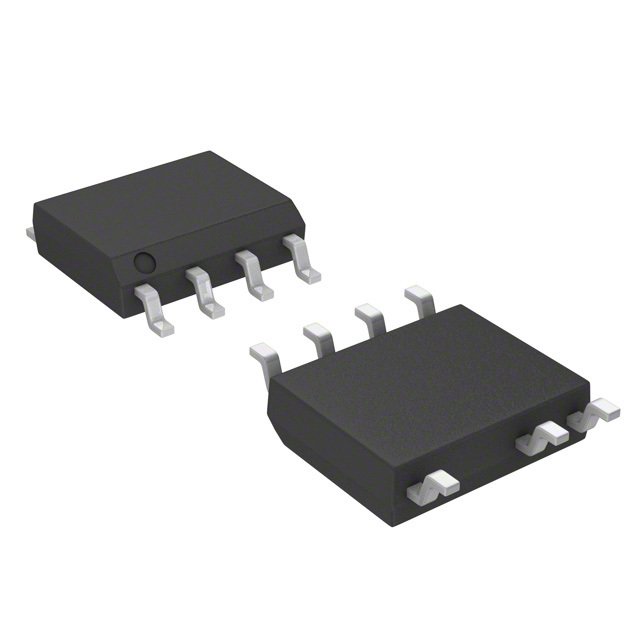

TEXAS INSTRUMENTS UCC28881D 芯片, 离线式开关, 75KHZ, SOIC-7 新
The UCC28881 integrates the controller and a 14-Ω, 700-V power MOSFET into one monolithic device. The device also integrates a high-voltage current source, enabling start up and operation directly from the rectified mains voltage. UCC28881 is the same family device of UCC28880, with higher current handling capability.
The low quiescent current of the device enables excellent efficiency. With the UCC28881 the most common converter topologies, such as buck, buck-boost and flyback can be built using a minimum number of external components.
The UCC28881 incorporates a soft-start feature for controlled start up of the power stage which minimizes the stress on the power-stage components.
额定功率 4.5 W
输出电流 225 mA
击穿电压 700 V
针脚数 7
开关频率 62 kHz
拓扑结构 Buck
占空比 55 %
输入电压AC Max 560 v
输入电压AC Min 30 v
最大占空比 55 %
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 7
封装 SOIC-7
封装 SOIC-7
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UCC28881D TI 德州仪器 | 当前型号 | 当前型号 |
UCC28881DR 德州仪器 | 完全替代 | UCC28881D和UCC28881DR的区别 |
