Module DC-DC 24Vin 1Out 18V 5.6A 100.8W 8Pin Quarter-Brick
Isolated Module DC DC Converter 1 Output 18V 5.6A 18V - 36V Input
得捷:
DC DC CONVERTER 18V 101W
艾睿:
Provide the ability to switch between voltages by using this step down UVQ-18/5.6-D24PB-C DC to DC converter and switching regulator module. It has a voltage of 18 V. This part has a temperature range of -40 °C to 110 °C.
安富利:
Module DC-DC 1-OUT 18V 5.6A 100.8W 8-Pin Quarter-Brick
Chip1Stop:
Module DC-DC 24VIN 1-OUT 18V 5.6A 100.8W 8-Pin Quarter-Brick
Verical:
Module DC-DC 24VIN 1-OUT 18V 5.6A 100.8W 8-Pin Quarter-Brick
Newark:

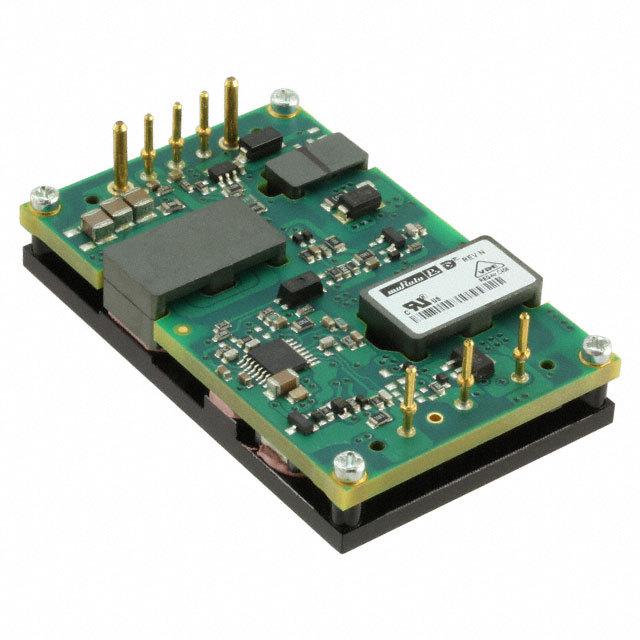

# MURATA POWER SOLUTIONS UVQ-18/5.6-D24PB-C Isolated Board Mount DC/DC Converter, Low Profile, Fixed, 1 Output, 18 V, 36 V, 100.8 W, 18 V
电源电压DC 24.0 V, 36.0 V max
额定功率 101 W
输出接口数 1
输入电压DC 18.0V ~ 36.0V
输出电压 18 V
输出电流 5.6 A
输出功率 100.8 W
隔离电压 2 kV
开关频率 265 kHz
输入电压Max 36 V
输入电压Min 18 V
输入电压DC Max 36 V
输入电压DC Min 18 v
输出电流Max 5.6 A
输出功率Max 100.8 W
工作温度Max 110 ℃
工作温度Min -40 ℃
输入电压 18V ~ 36V

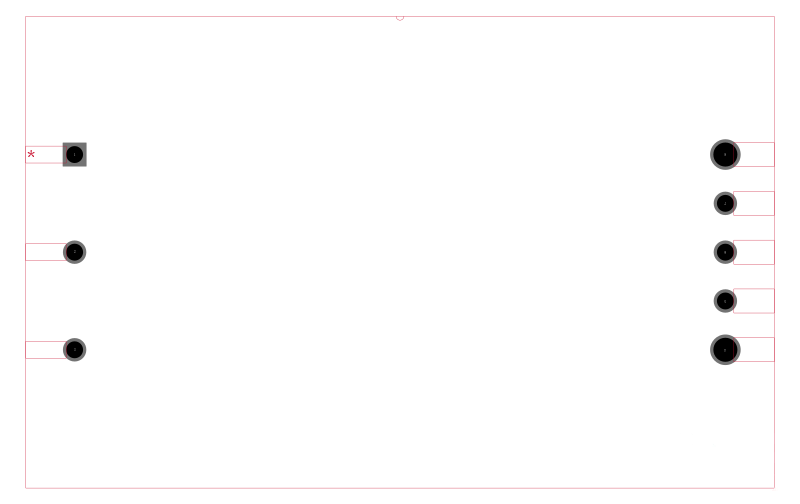

安装方式 Through Hole

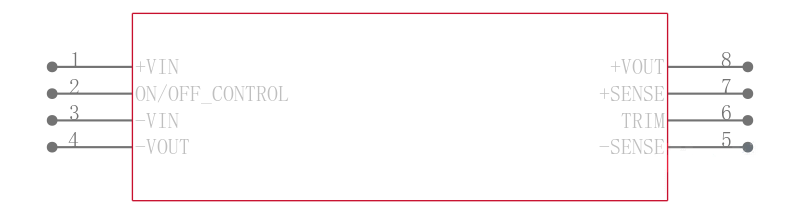

引脚数 8
封装 Quarter-Brick

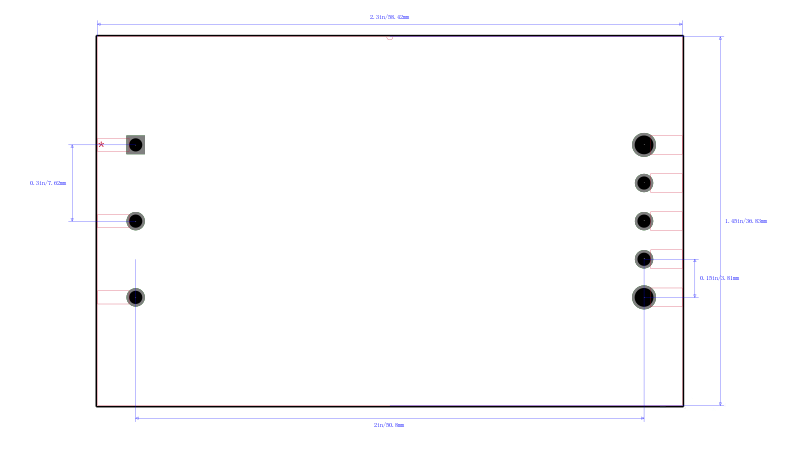

宽度 36.8 mm
高度 12.7 mm
封装 Quarter-Brick
工作温度 -40℃ ~ 110℃
产品生命周期 Active
包装方式 Tray
制造应用 ITE（商业）
RoHS标准
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
